Air Injection Control Valve: Service and Repair
Combination valve for secondary air inlet, removing and installing Removing ^

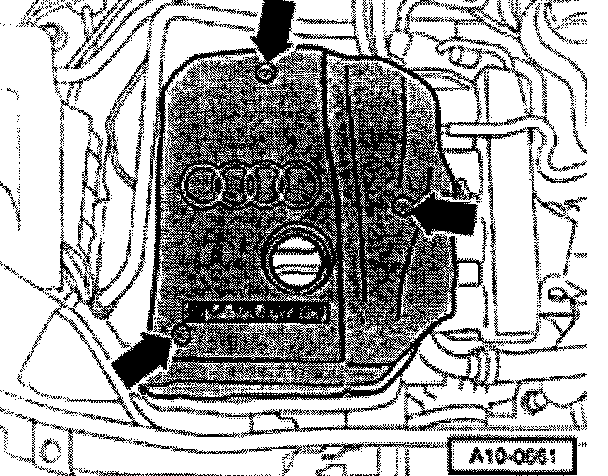

Remove engine cover -arrows-.
^

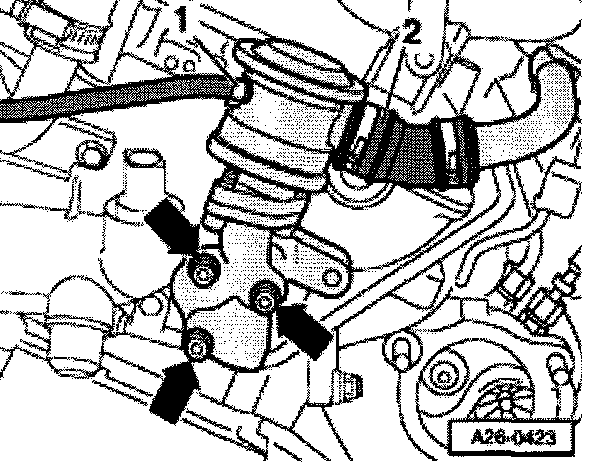

Disconnect hoses -1- and -2- from combination valve.
^
Unbolt combination valve -arrows,
Installing Installation is carried out in the reverse order of removal.
Note: Replace gaskets and seals.
Tightening torque
