Headlamp Alignment Control Module: Service and Repair



Removing
- Remove left luggage compartment liner. Service and Repair

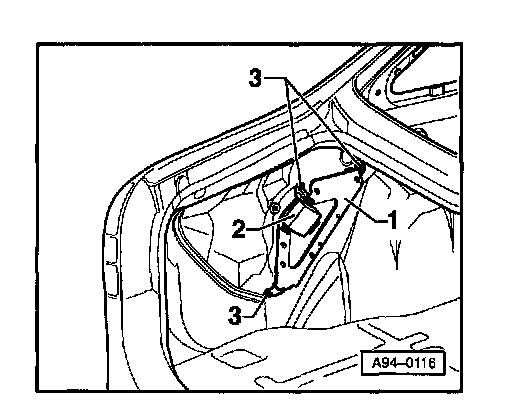

The automatic vertical aim control system control module -2- is mounted on bracket -1- under the luggage compartment liner.
- If necessary remove screws -3-.
- Remove electrical connector.

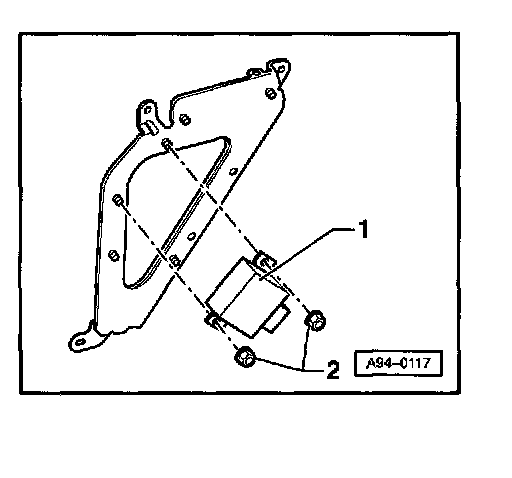

- Remove control module -1- by removing nuts -2-.


Installing
- Install control module in reverse order of removal.
