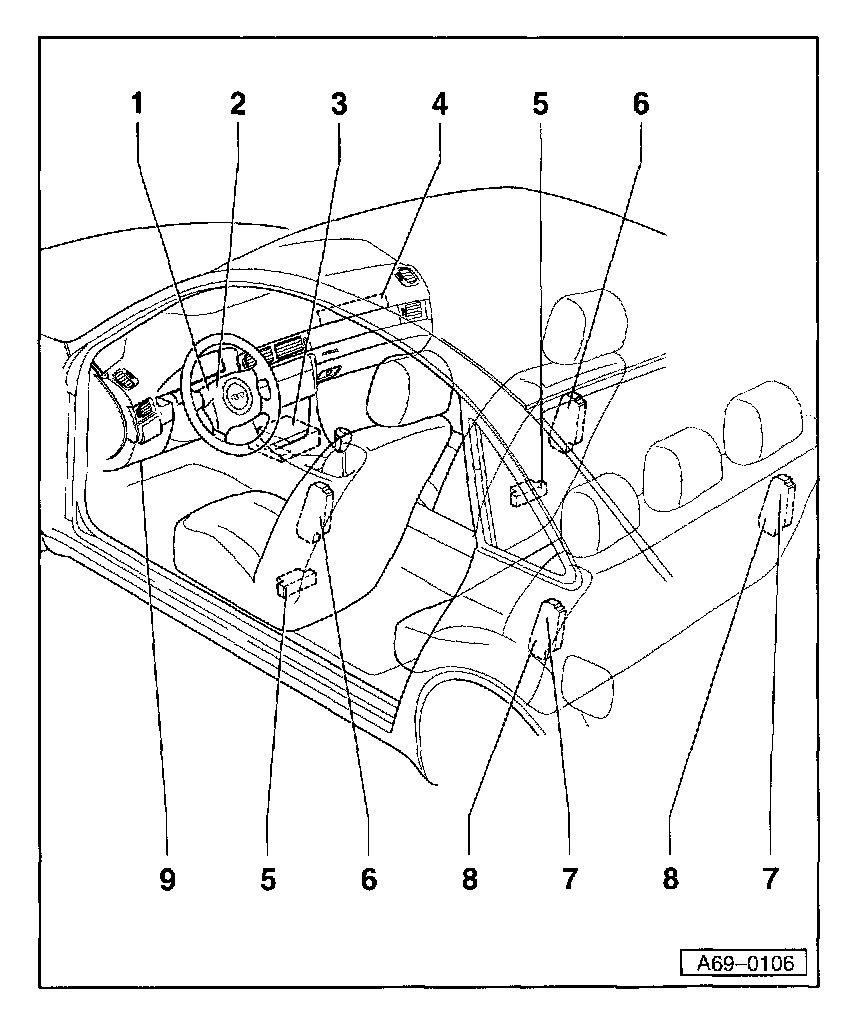

Air Bag Control Module: Locations
1
-
Driver-side airbag unit
2
-
Driver-side airbag unit (sport steering wheel)
3
-
Airbag Control Module
4
-
Passenger-side airbag unit
5
-
Crash sensor for side airbag
6
-
Side airbag
7
-
Side airbag, rear (folding backrest)
8
-
Side airbag, rear (fixed backrest)
9
-
Data Link Connector (DLC)
