Clutch Switch: Service and Repair

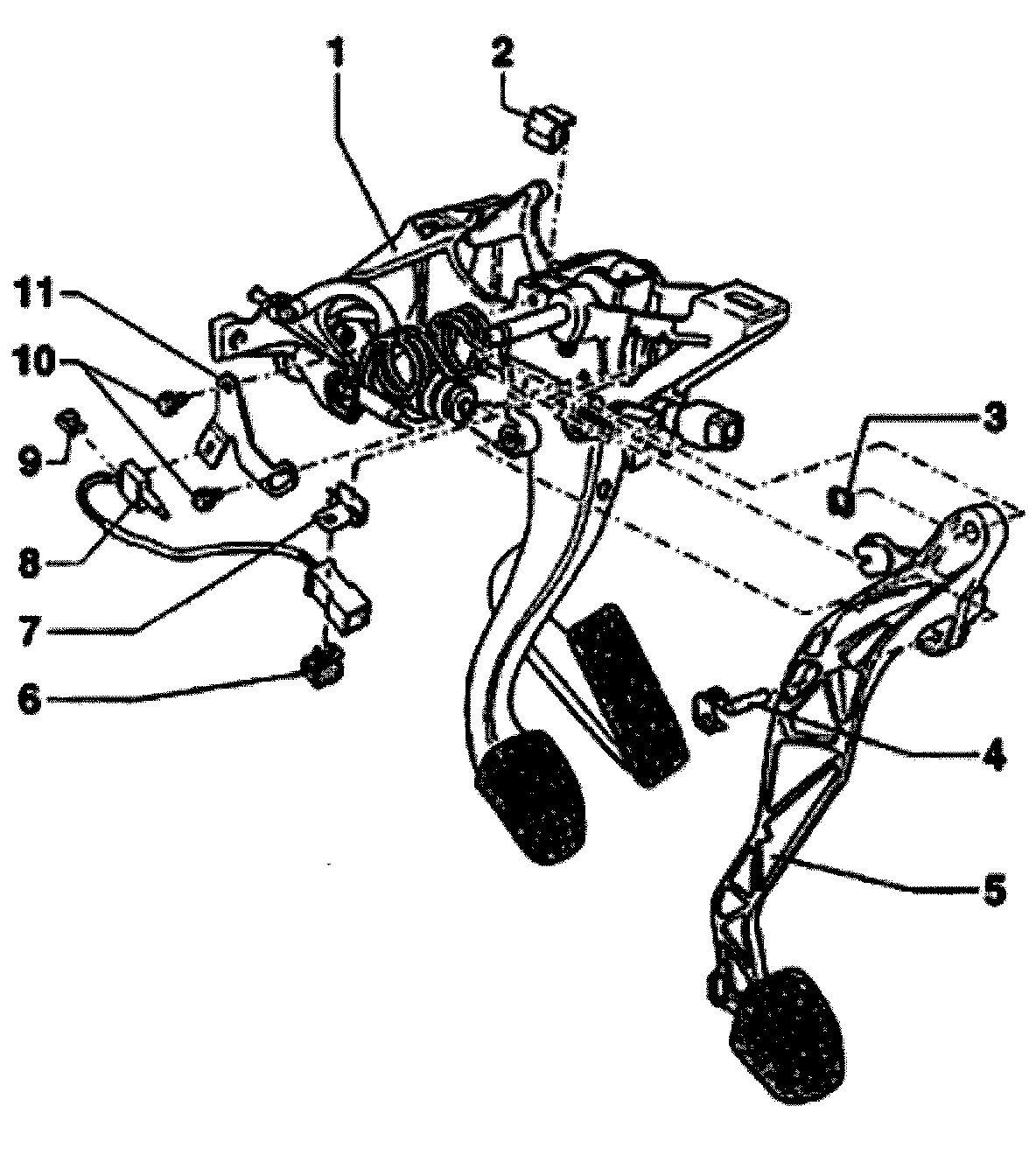

Clutch Pedal Position (CPP) switch -F194-, removing and installing

Note: The clutch pedal position (CPP) switch -F194- ensures that the engine can only be started with the clutch pedal depressed.

1. Mounting bracket
2. Cable bracket
3. Fuse
4. Bolt
^ Lock into clutch pedal
5. Clutch pedal
^ Removing and installing, Refer to Clutch Pedal Assembly, Service and Repair
6. Clip
7. Harness connector bracket
8. Clutch Pedal Position (CPP) Switch -F 194
^ Adjusting, Refer to Clutch Switch ECM, Adjustments
9. Clip
10. Screw and washer assembly
^ 8 Nm
11. Securing plate
