Knock Sensor Control Limit, Checking




Knock Sensor Control Limit, Checking

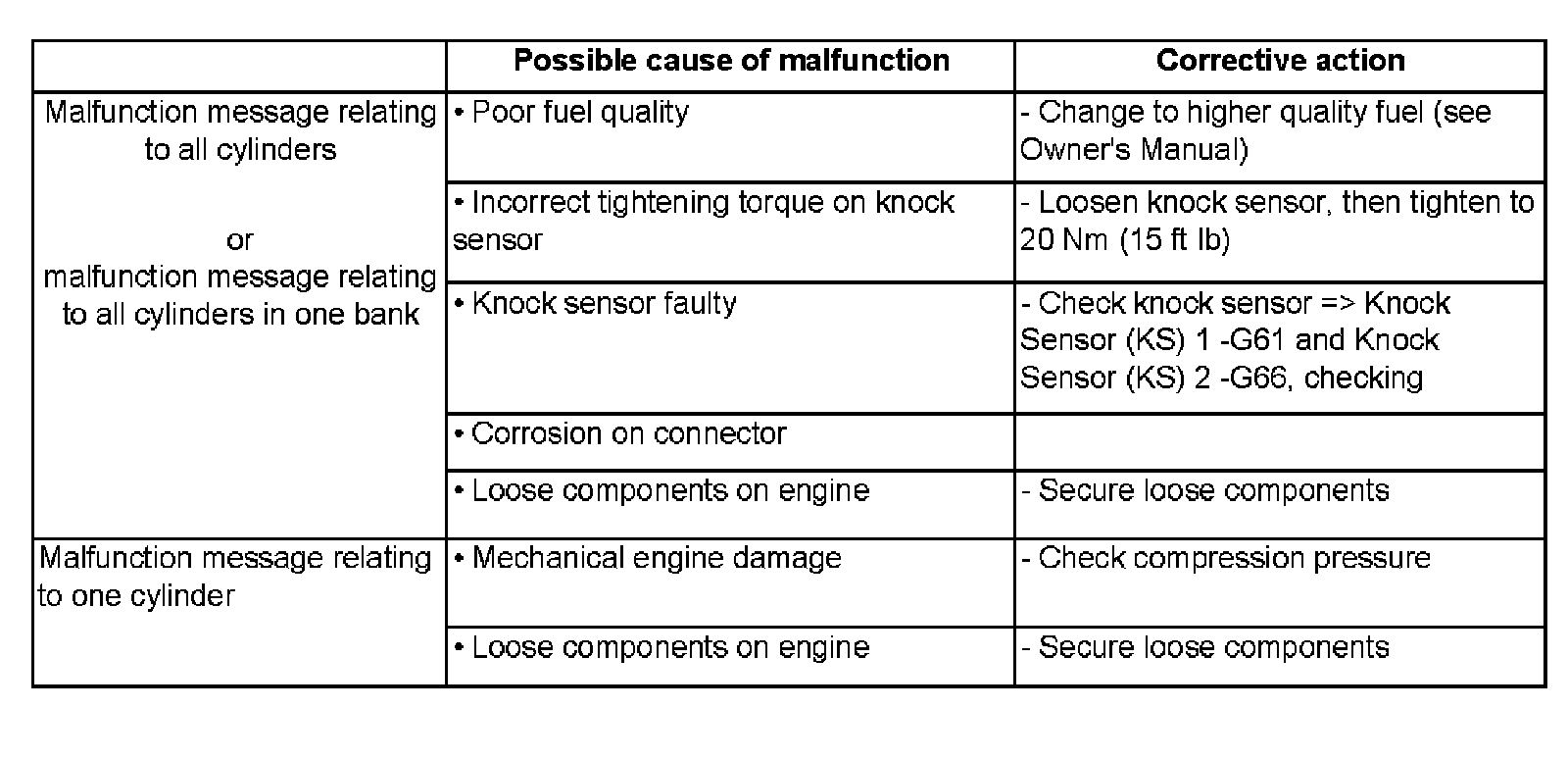

If the malfunction message "Knock Control to Limit Attained" is recorded in the DTC memory the following tests must be carried out:
