Selectable Functions When Using VAG1551/1552 or VAS5051




Available functions

The prerequisites for selecting the desired functions can be taken from the following table.

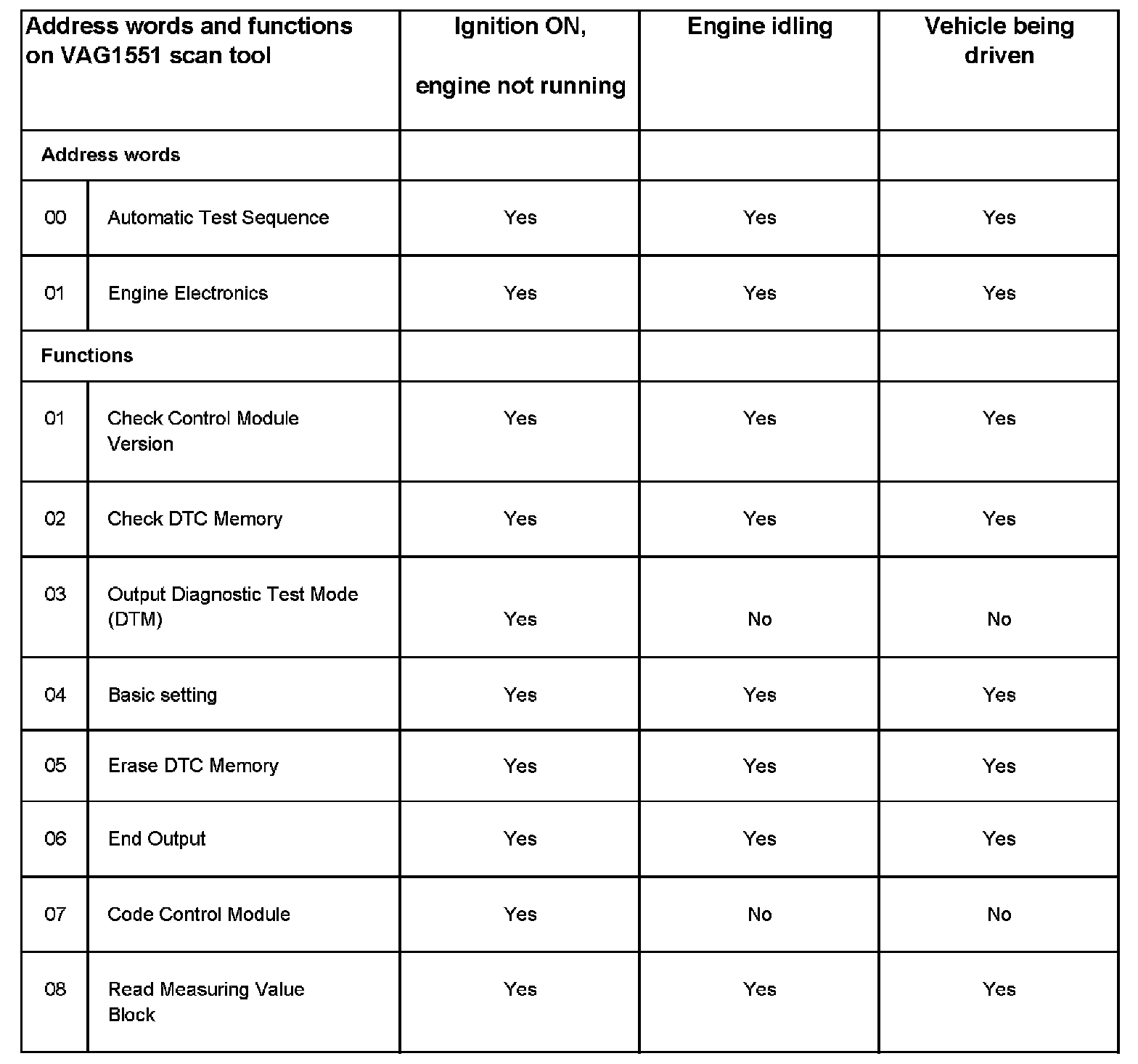

Address Word and Functions On VAG1551 Scan Tool

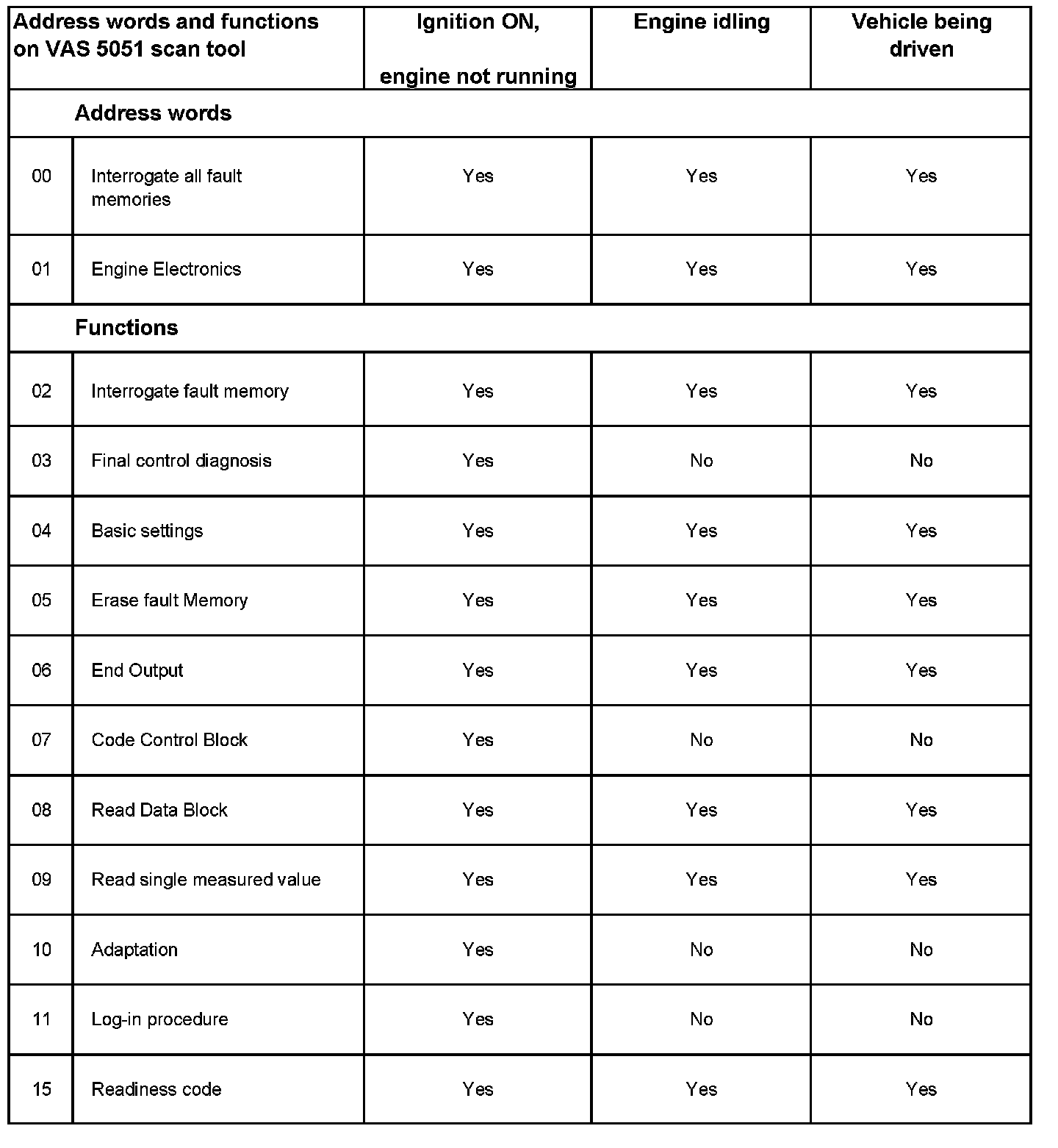

Address Word and Functions On VAS5051 Scan Tool
