Ignition System: Testing and Inspection

Misfire Recognition, Checking

Test Sequence
- Connect vehicle diagnostic, testing and information system VAS5051 or VAG1551 scan tool and select engine electronics control module by entering address word "01". When doing this the engine must be at idle. Refer to "Scan Tool Testing/Scan Tool Connecting and Initial Checks/Connecting VAS5051 or VAG1551" Testing and Inspection


Indicated on display


Rapid data transfer HELP
Select function XX


- Press buttons -0- and -8- to select function "Read Measuring Value Block" and confirm entry with -Q- button.


Indicated on display


Read Measuring Value Block
Input display group number XXX


- Press buttons -0-, -1- and -4- to select "Display Group 014" and confirm entry with - Q- button.


Indicated on display

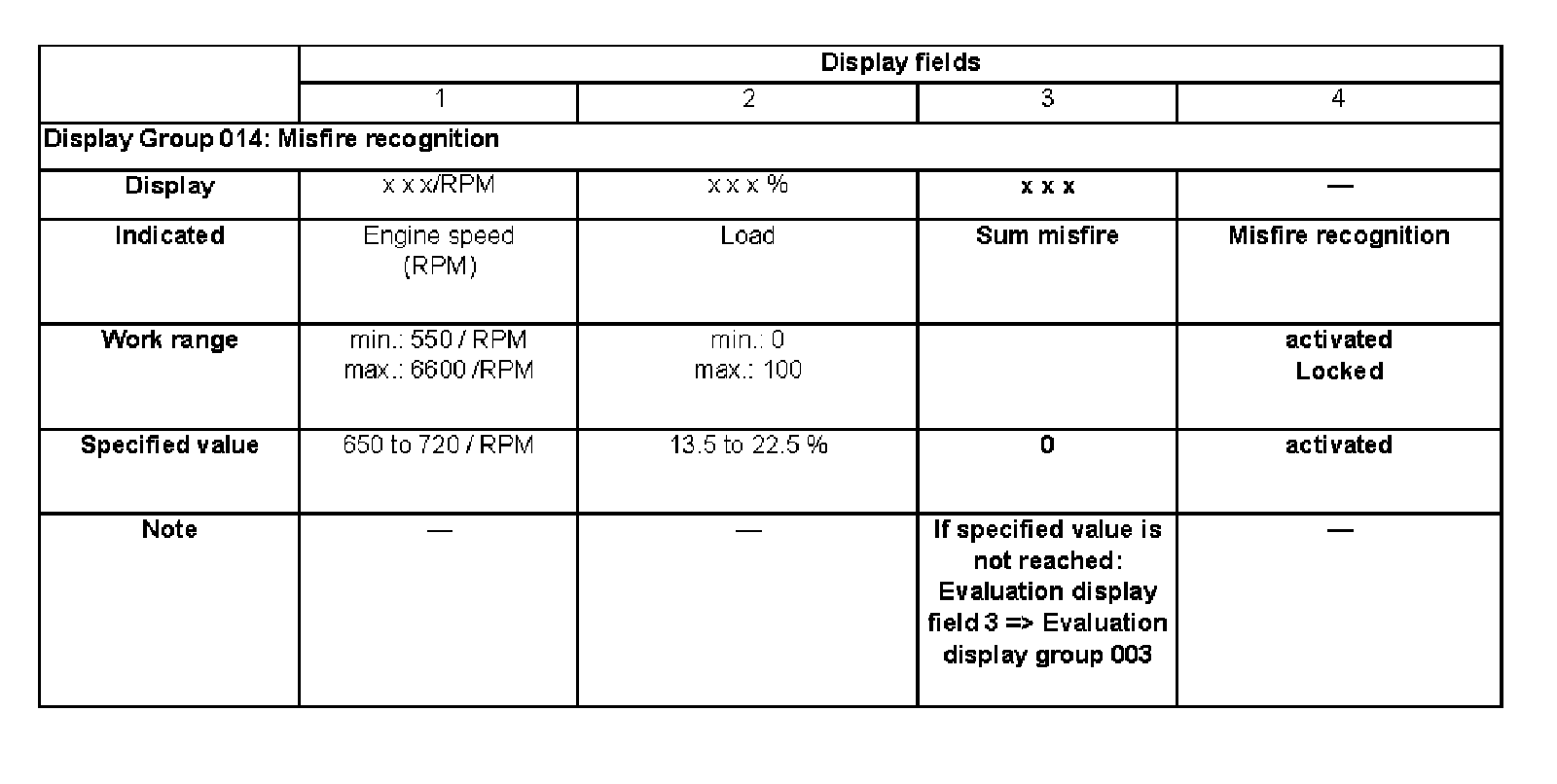

Read Measuring Value Block 14 ->
1 2 3 4

- Check misfire recognition.







If specified value is reached:
- Press -> button.


Indicated on display (select function)

Rapid Data Transfer HELP
Select function XX

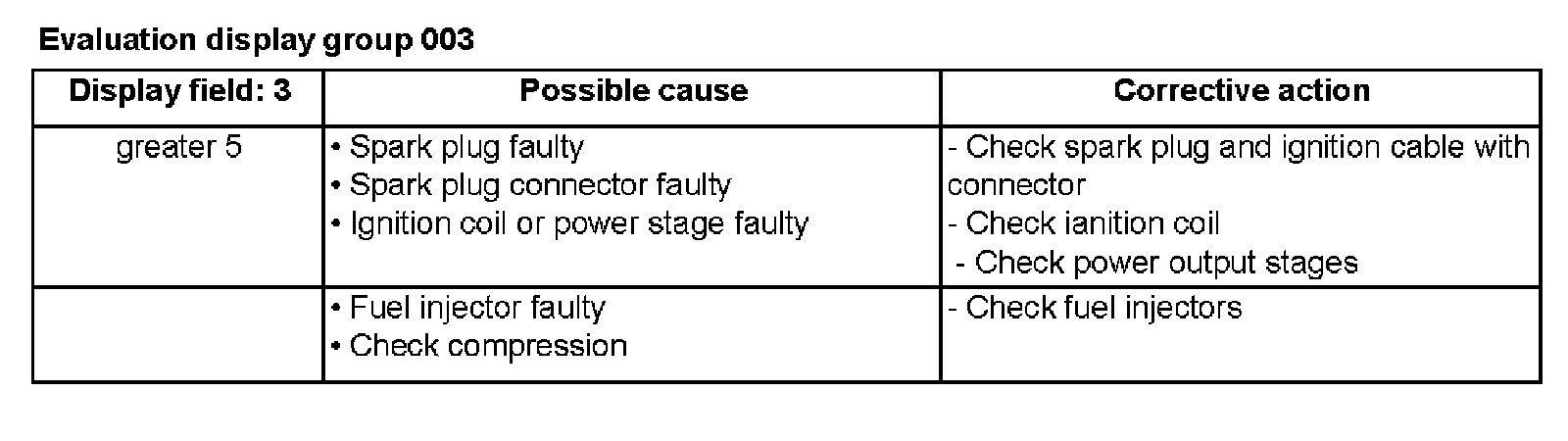

Evaluation display group 003
