Electrical Test Table
5 Speed Automatic Transmission 01L All Wheel Drive On Board Diagnostic (OBD)
Test Table

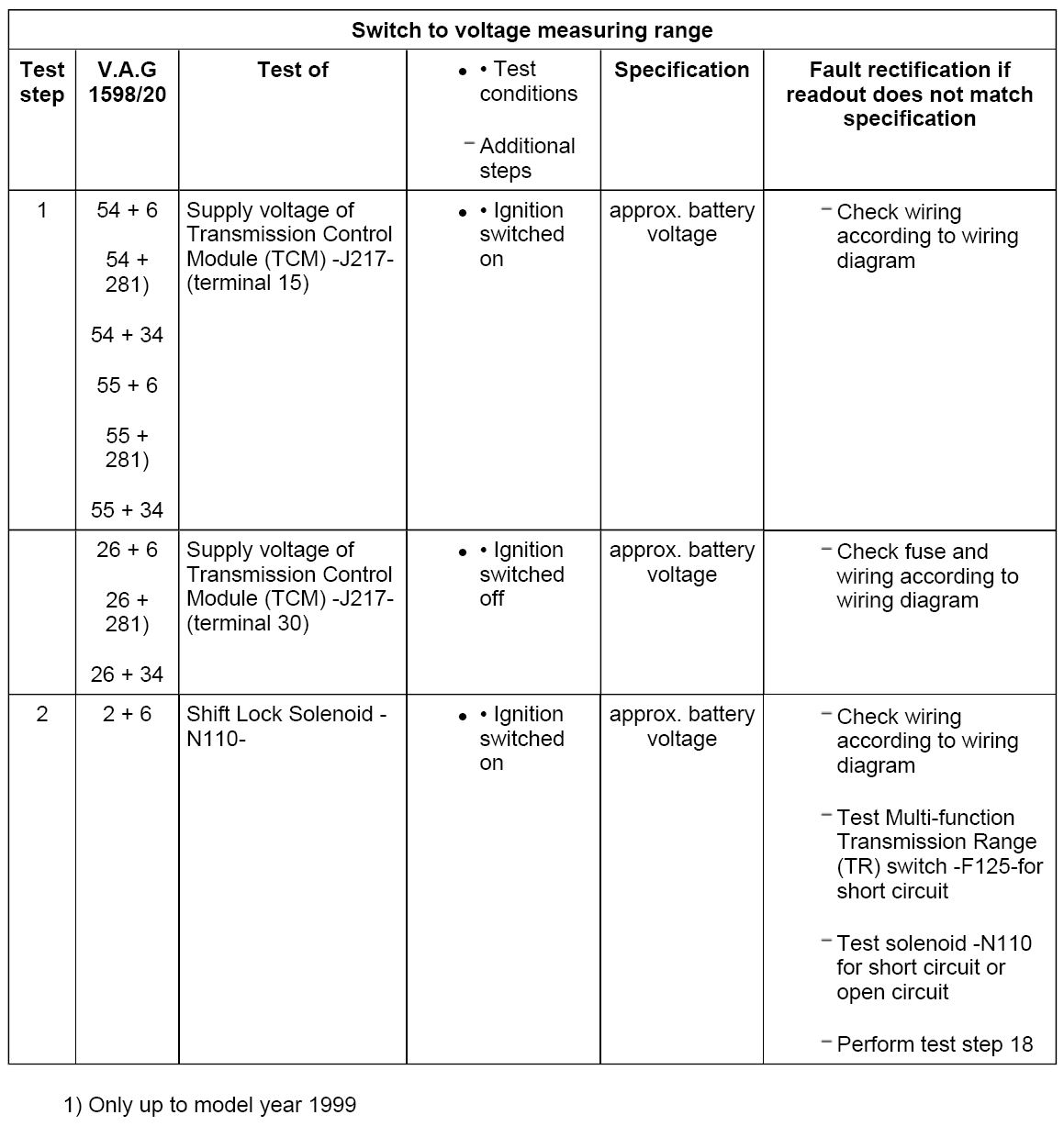

Test Steps 1-2:

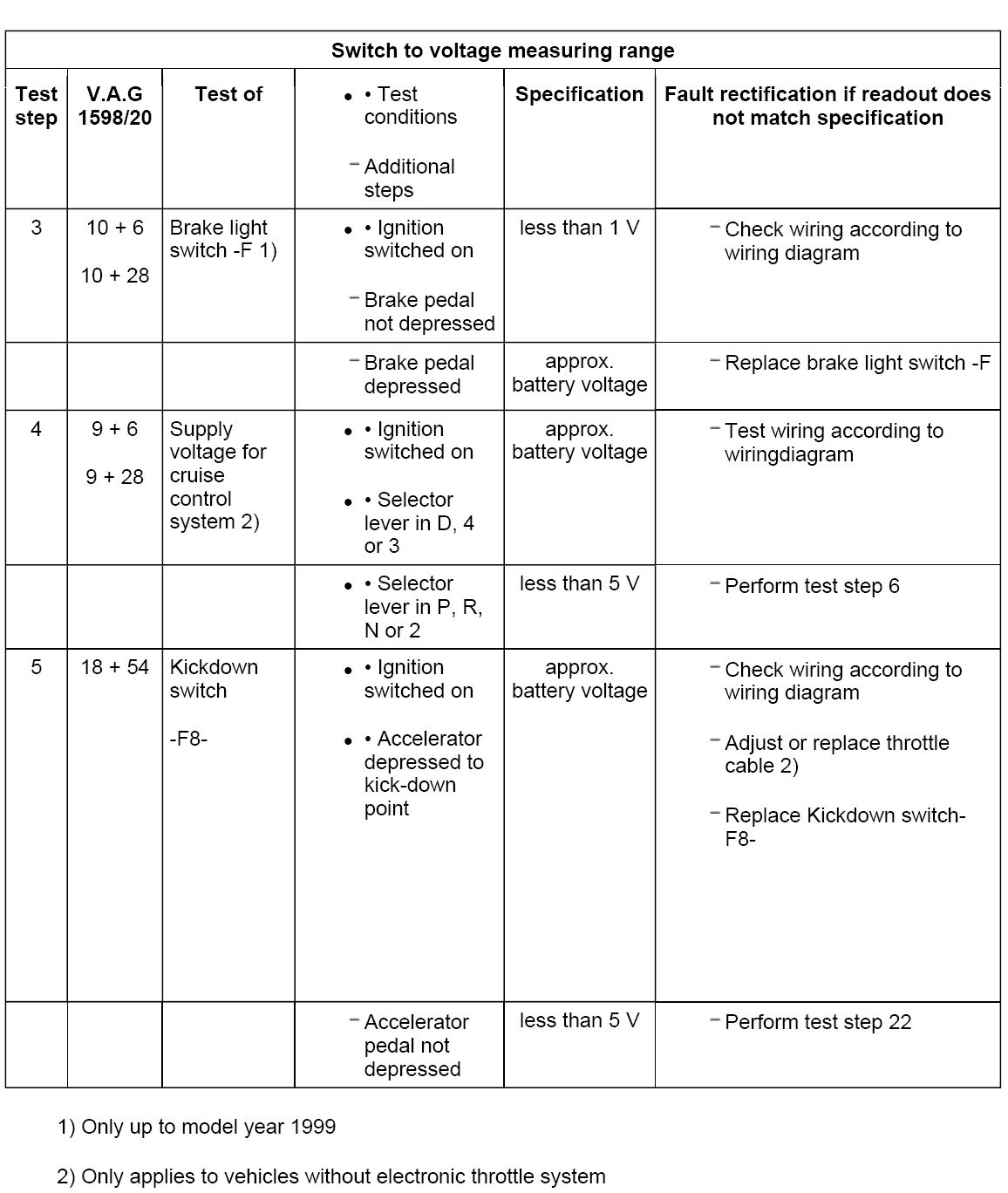

Test Steps 3-5:
Test Step 6:

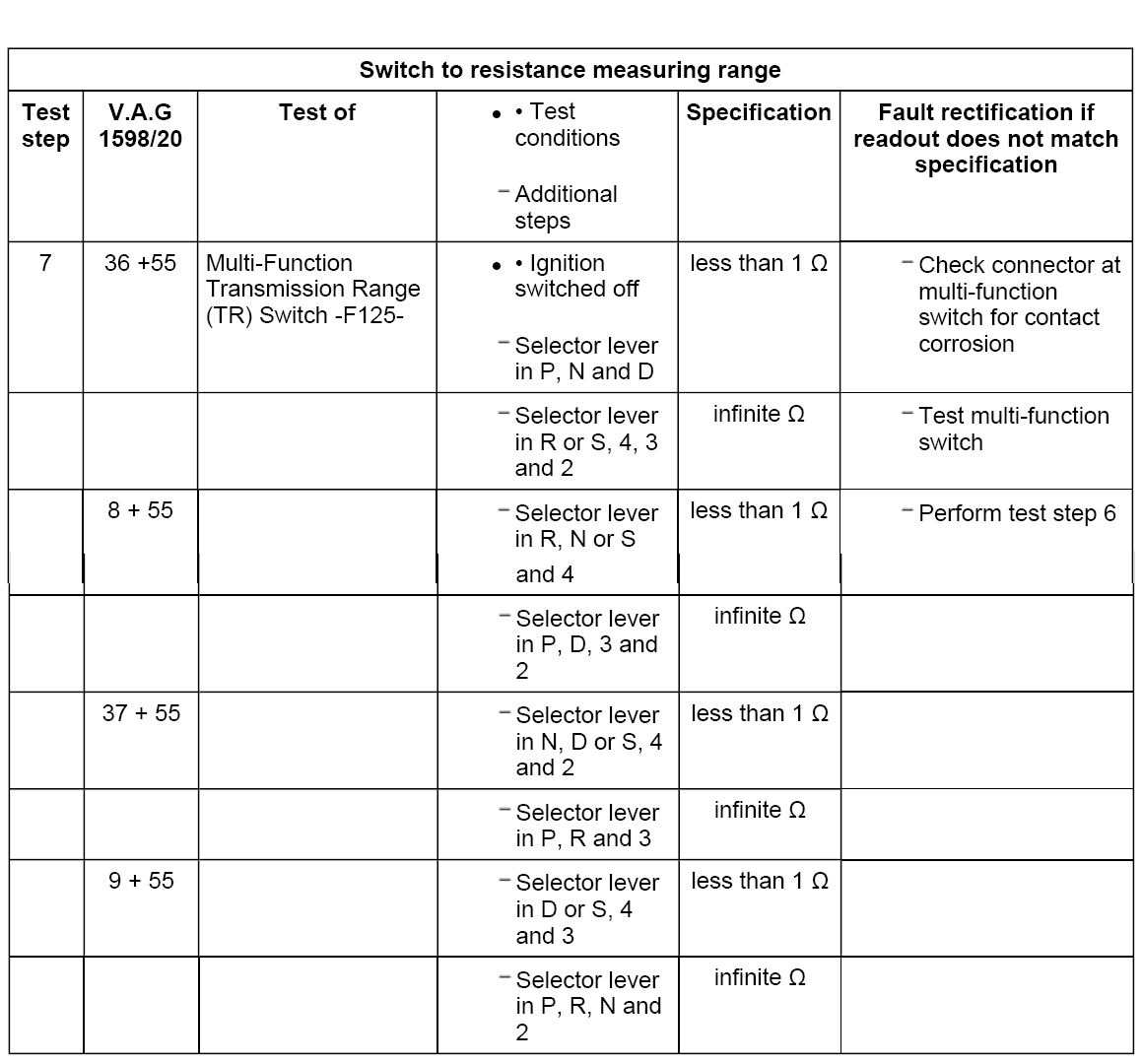

Test Step 7:

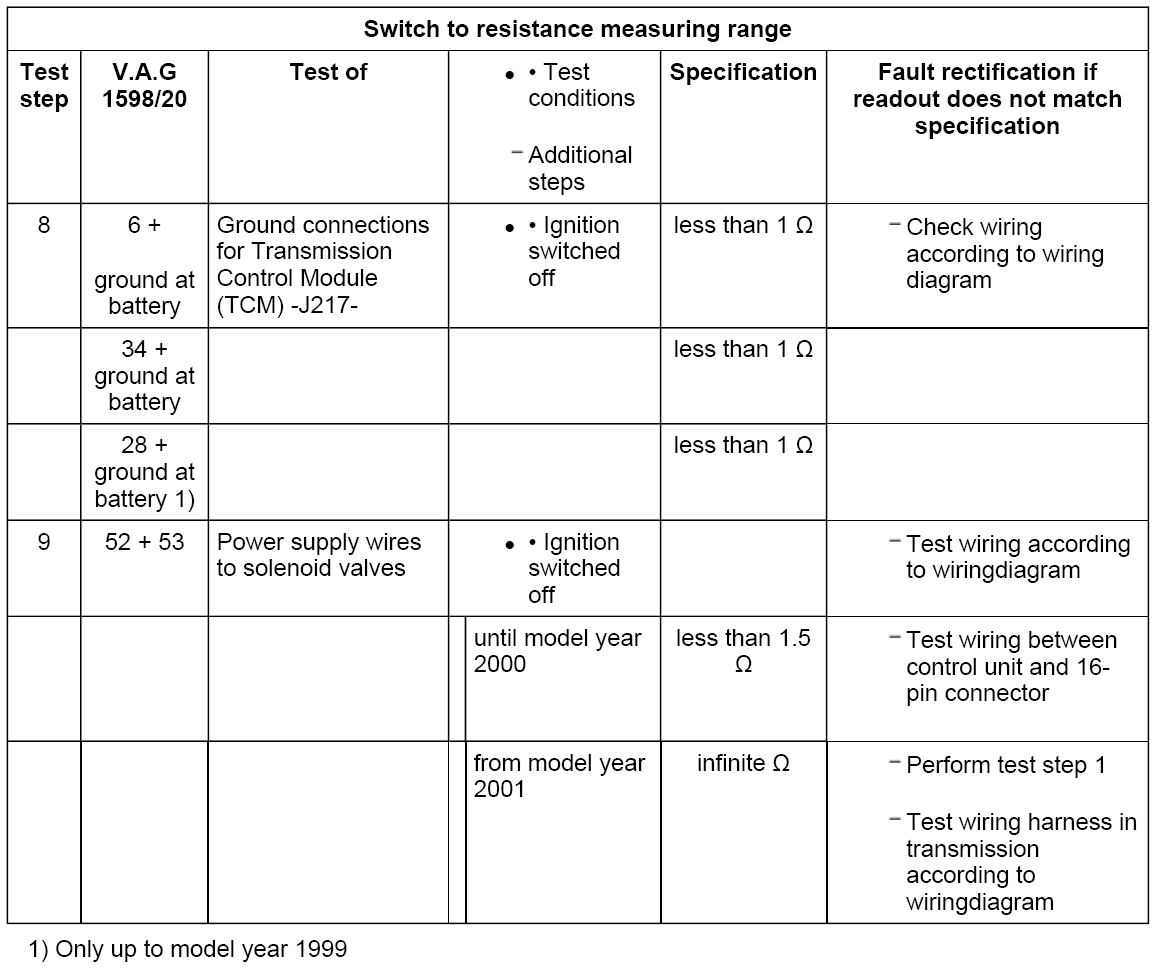

Test Steps 8-9:

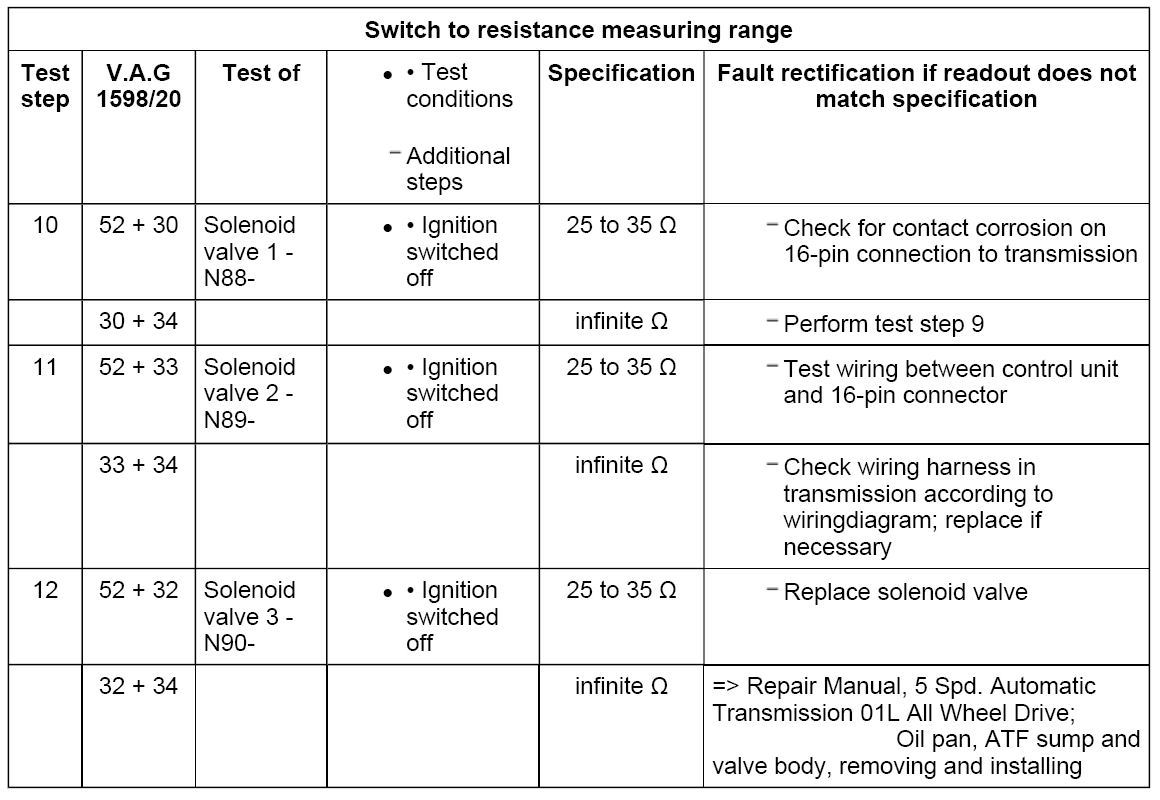

Test Steps 10-12:

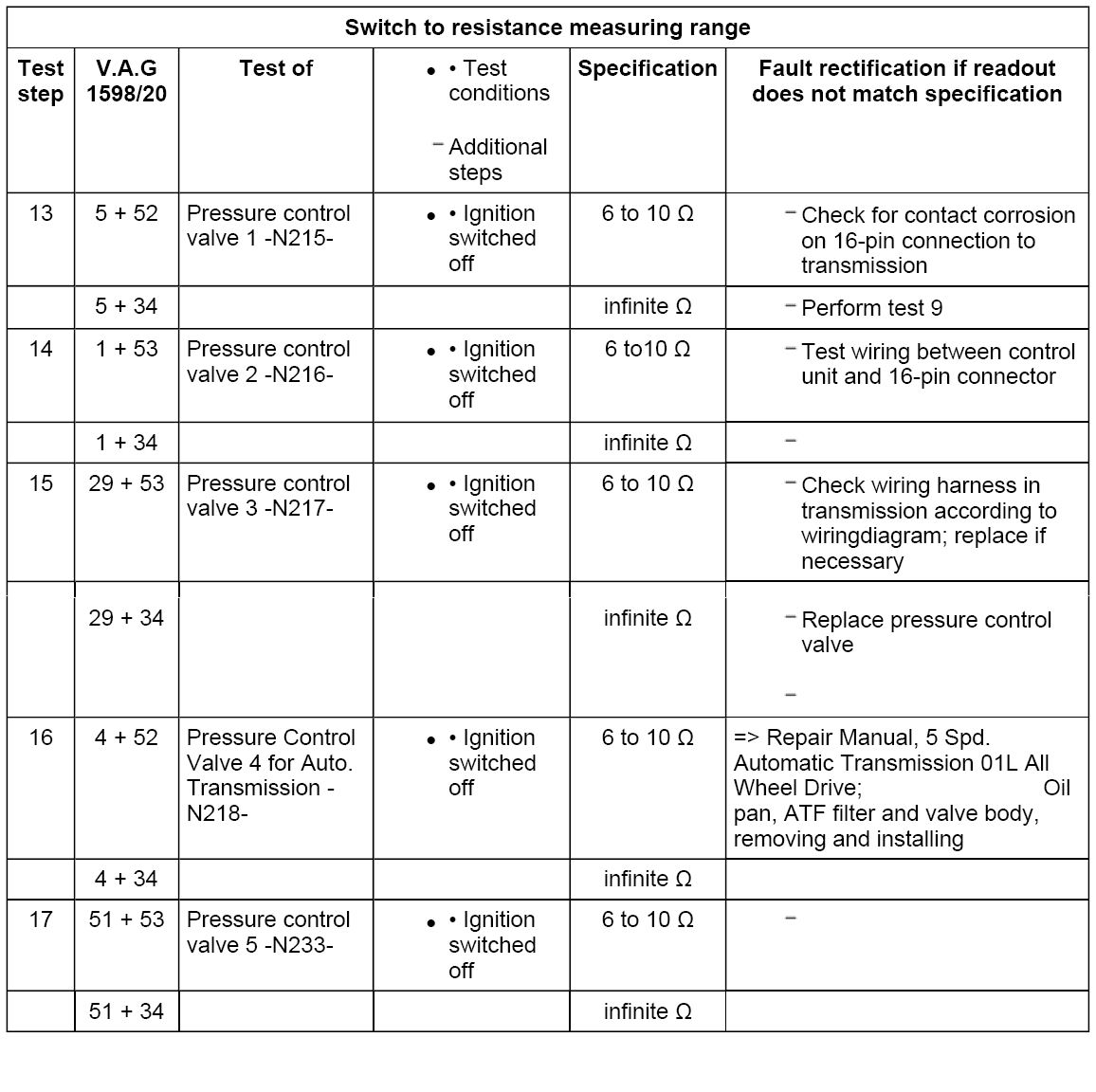

Test Steps 13-17:

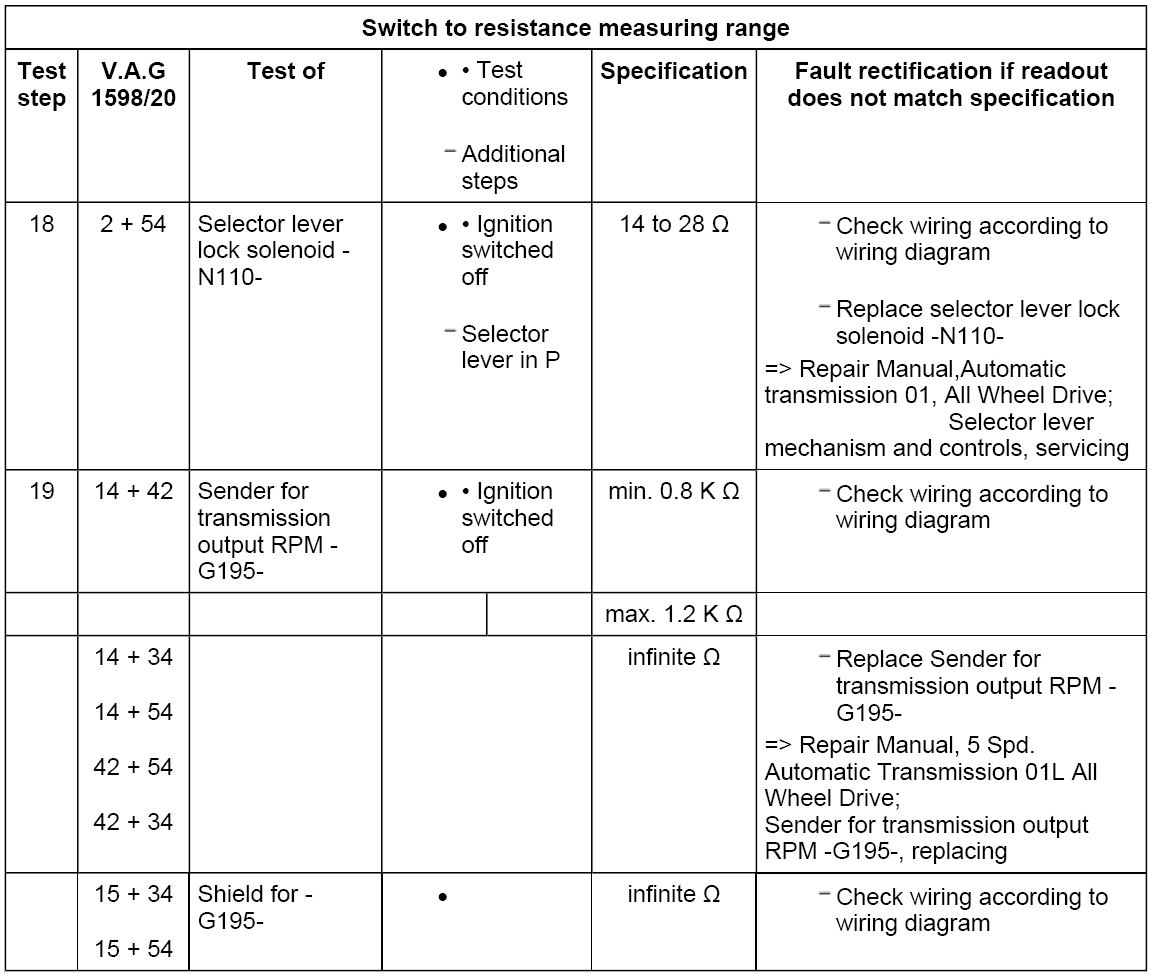

Test Steps 18-19:

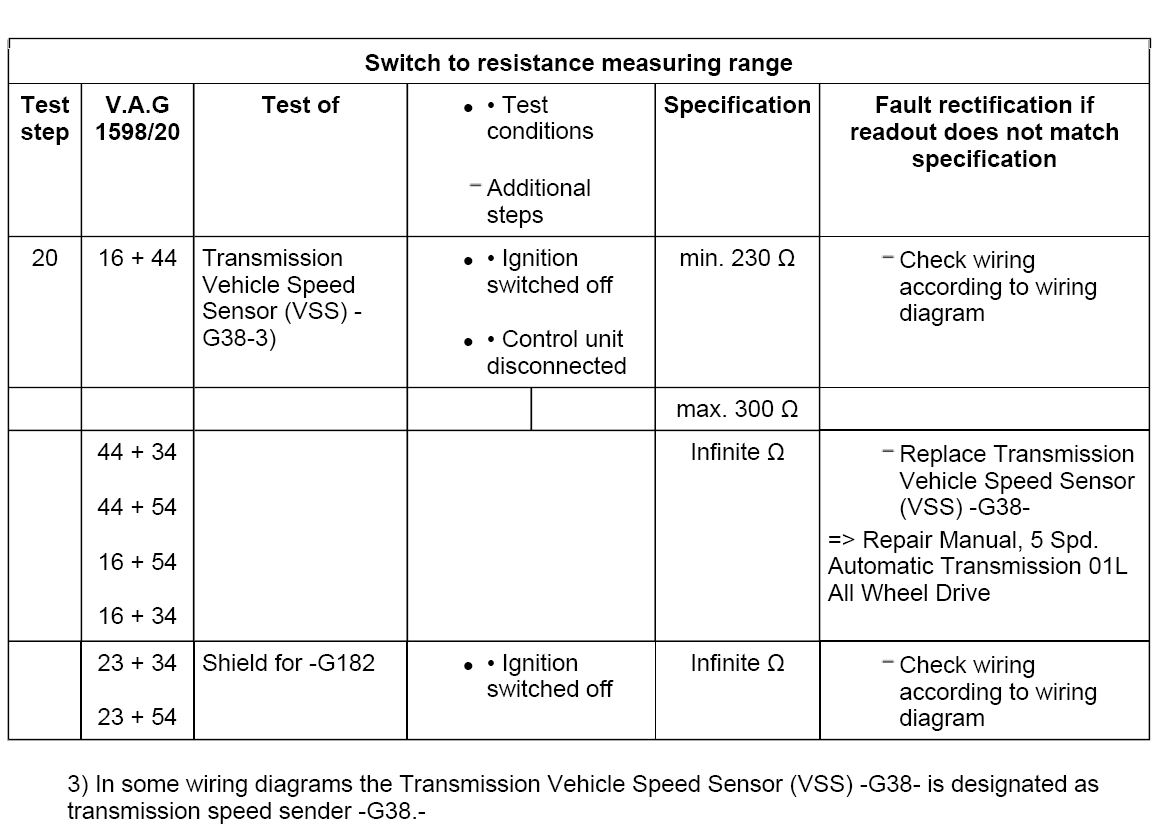

Test Step 20:

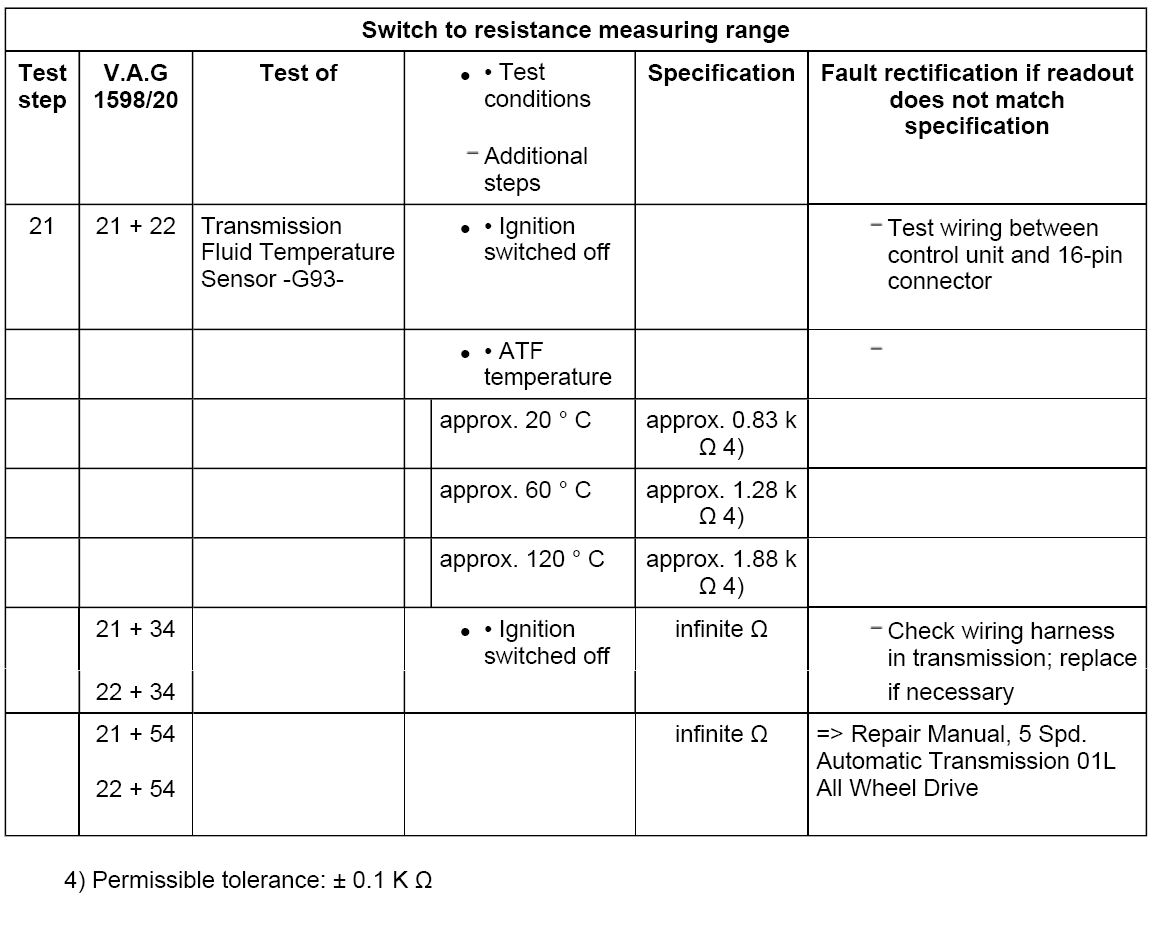

Test Step 21:

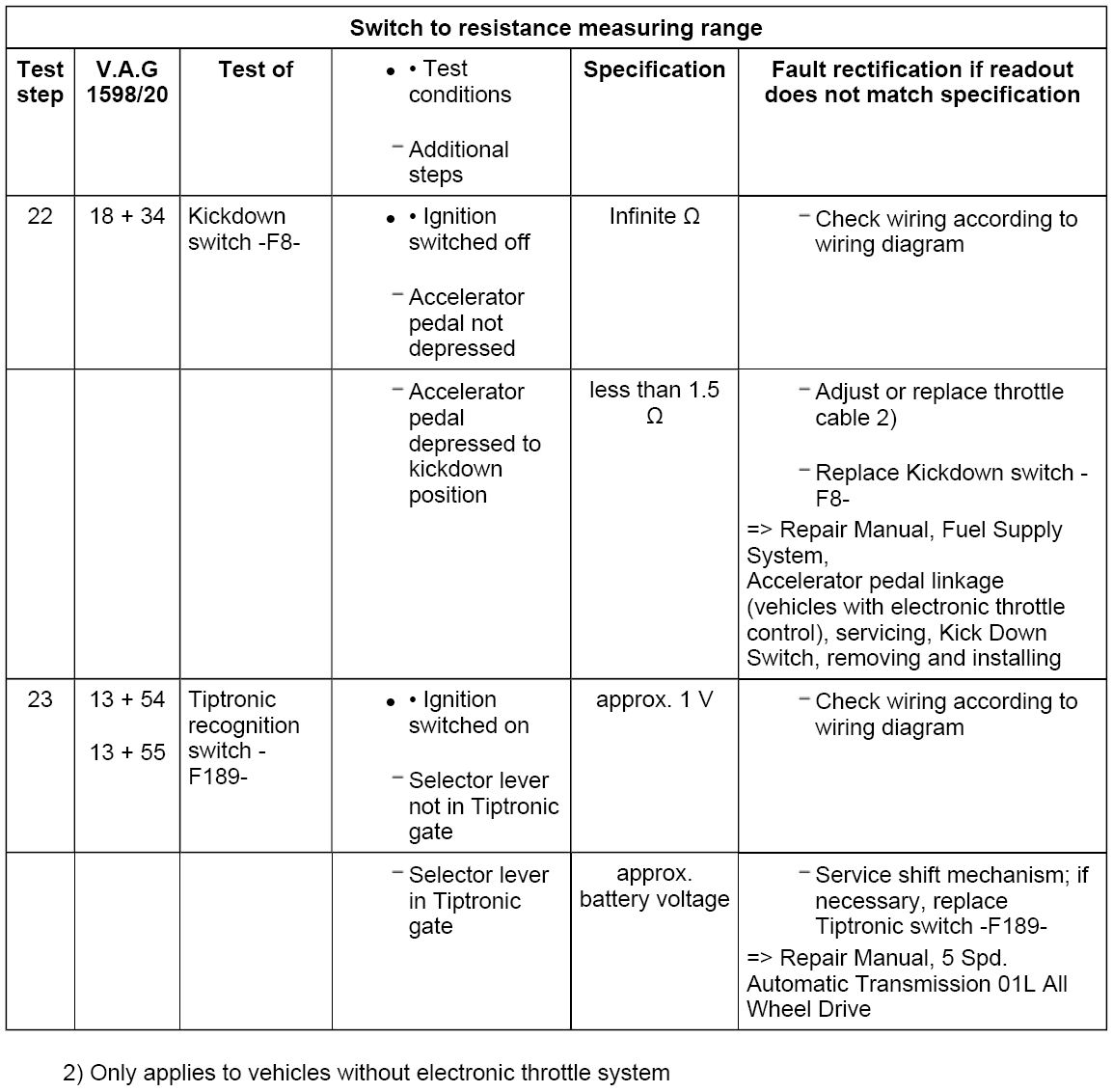

Test Steps 22-23:

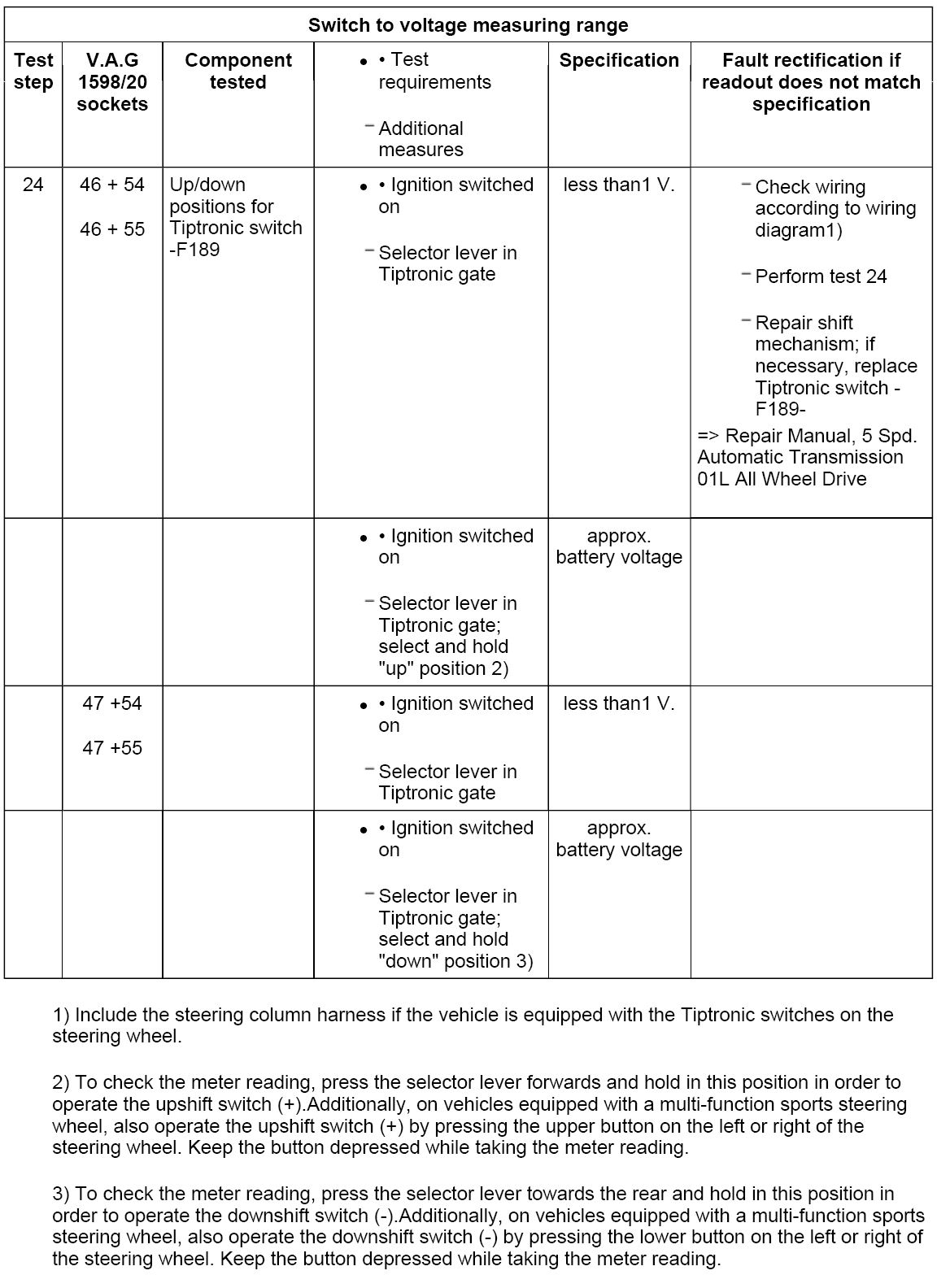

Test Step 24:
Test Step 25:
