Electrical Test Table



Electrical Test Table

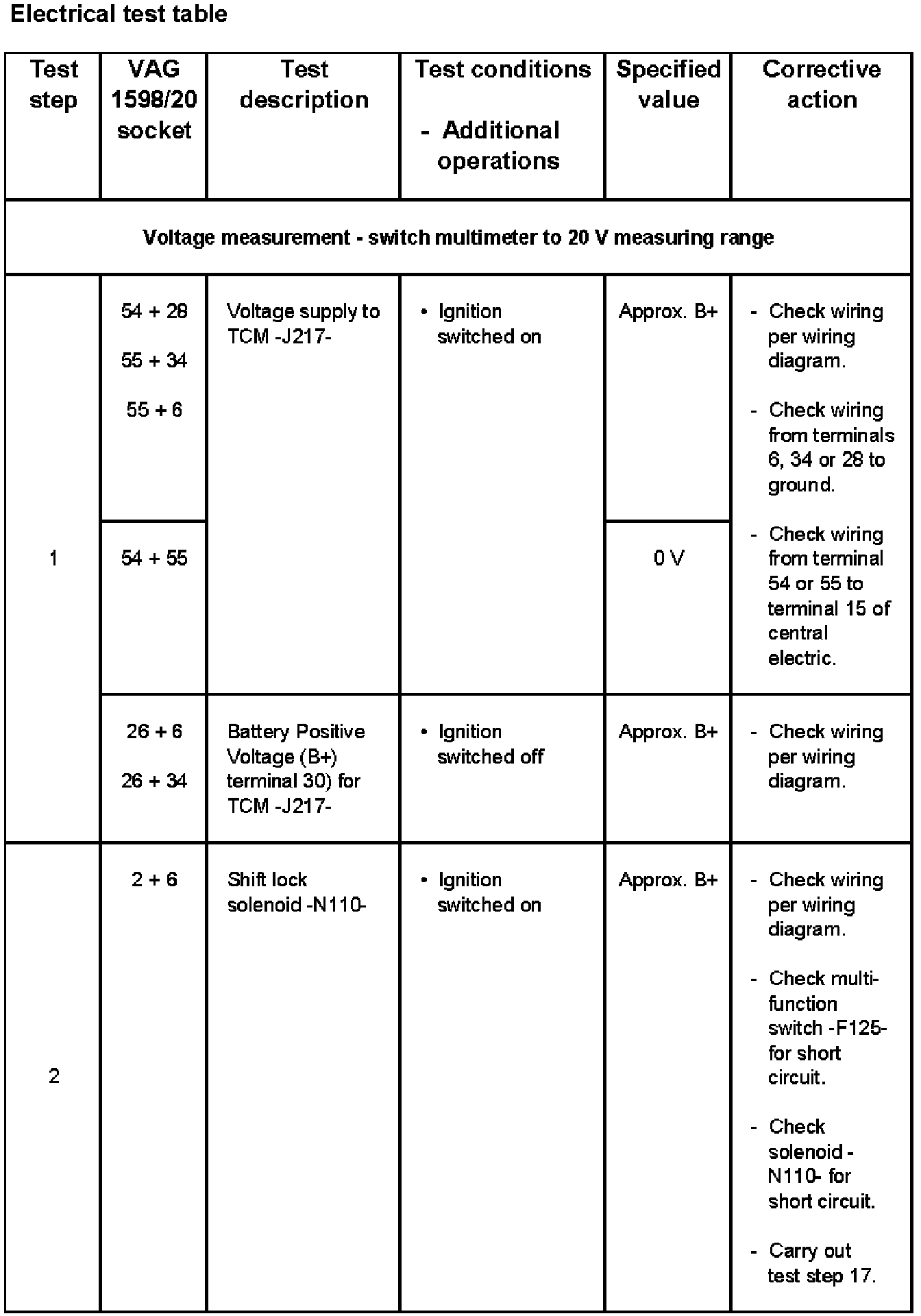

Test Step 1 - 2:






Test Step 3 - 5:

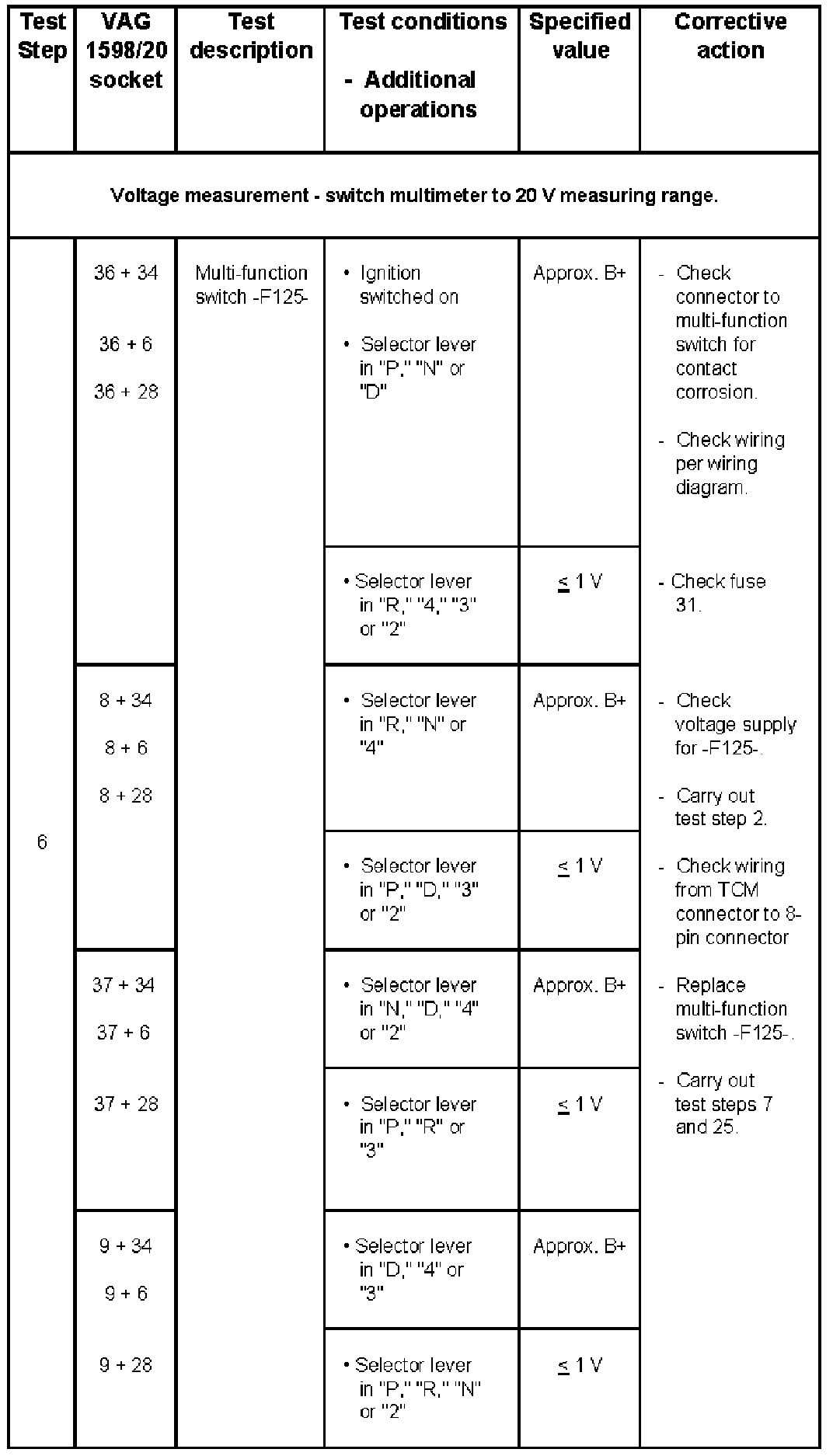

Test Step 6:

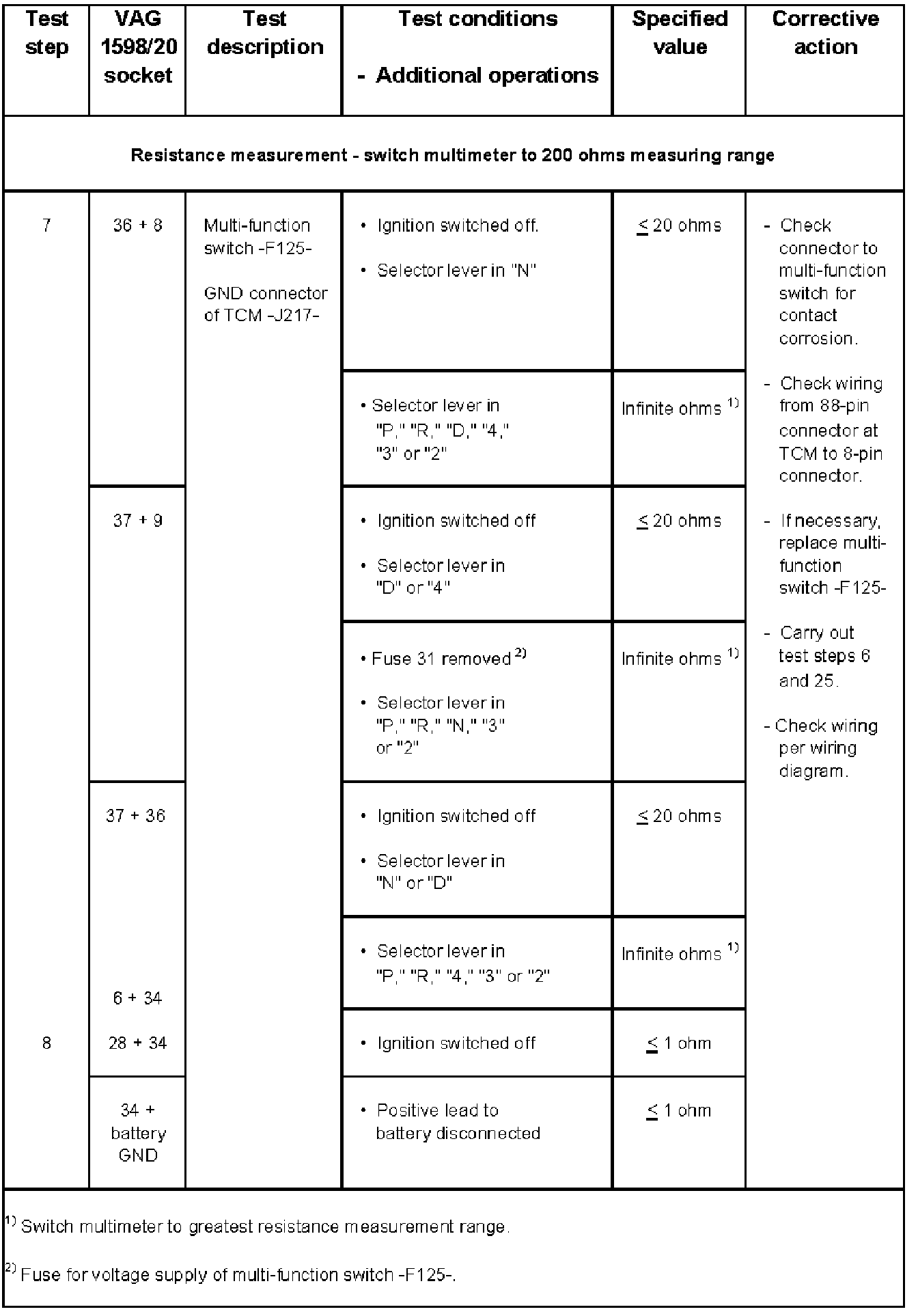

Test Step 7 - 8:

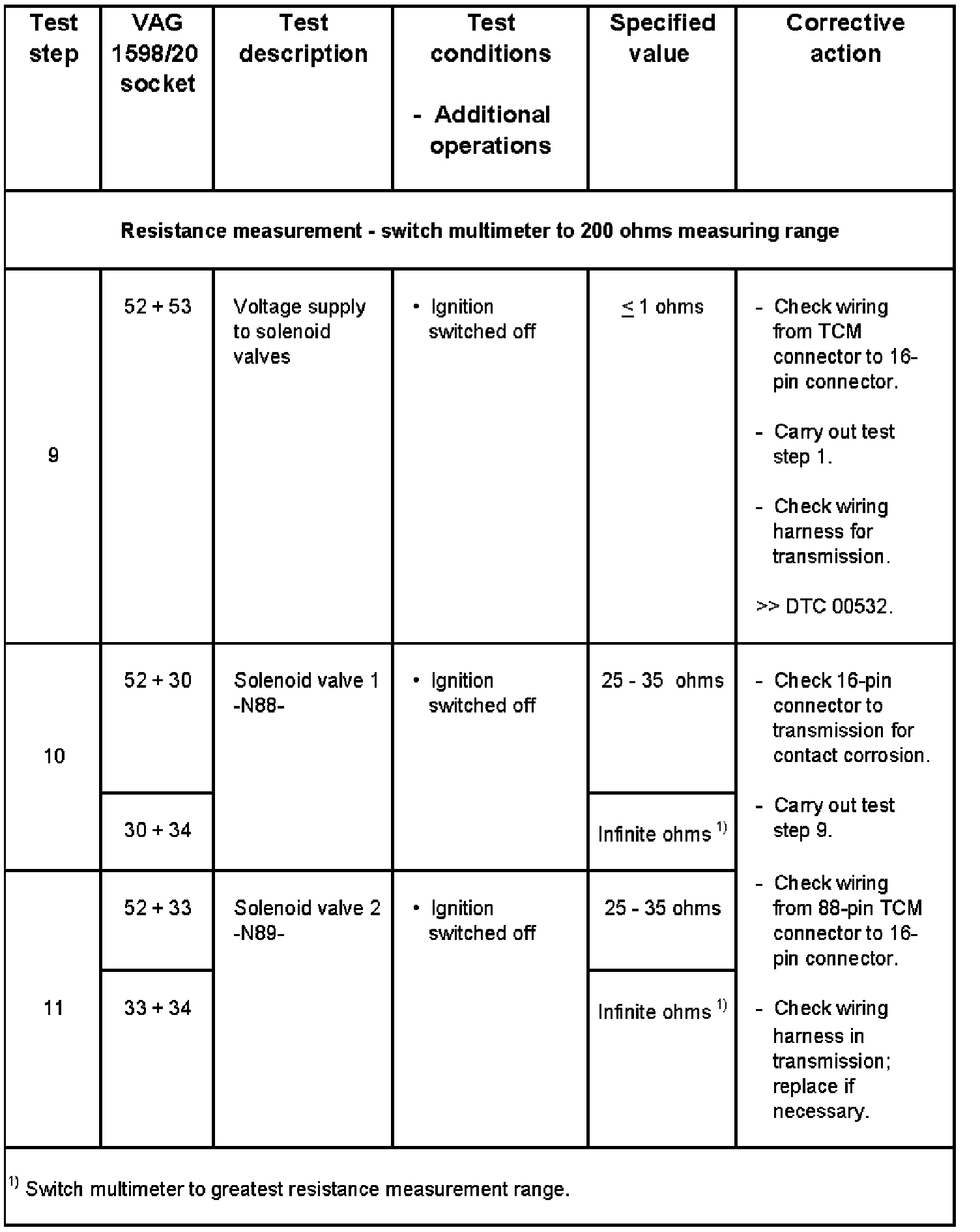

Test Step 9 - 11:

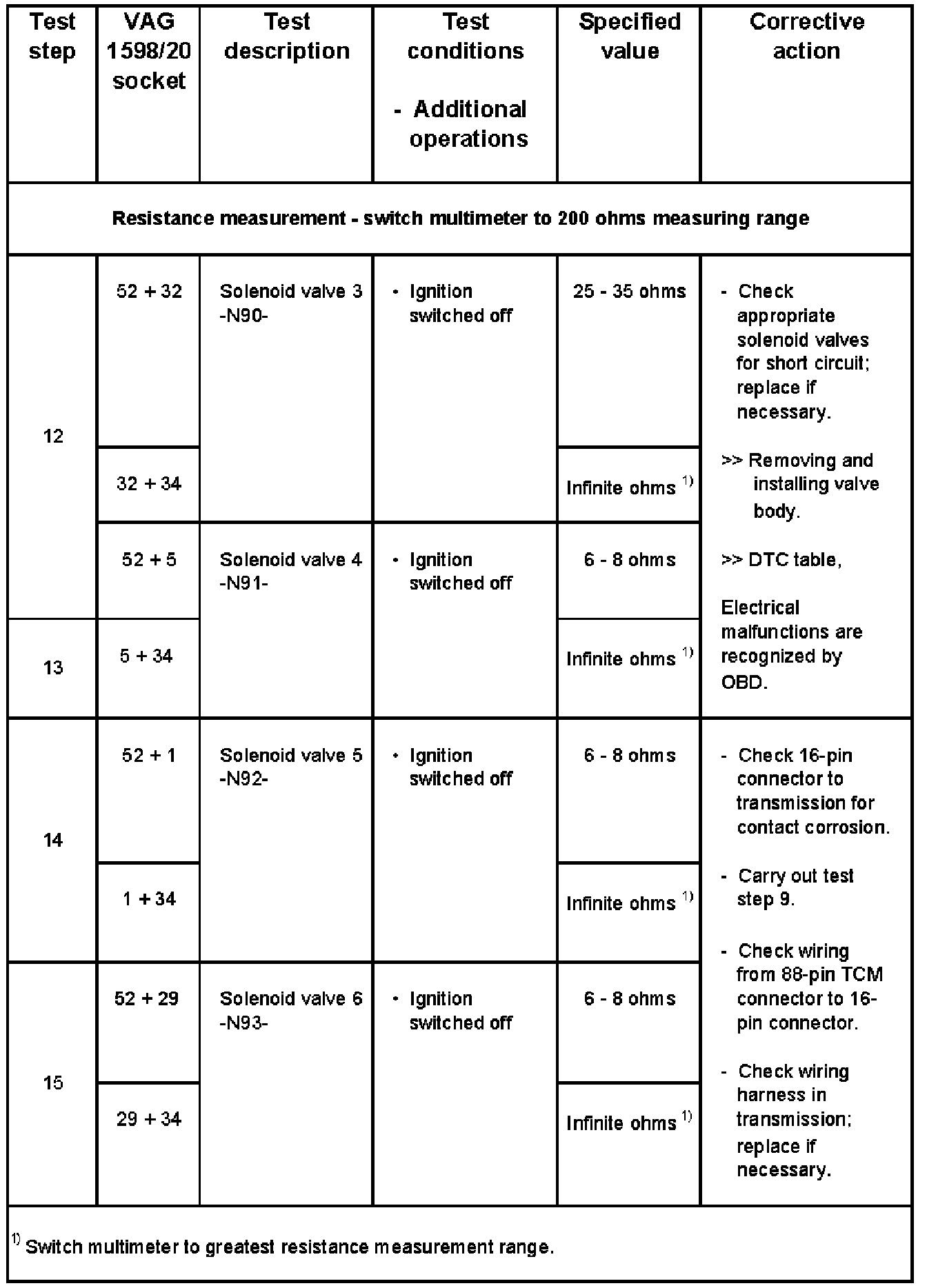

Test Step 12 - 15:

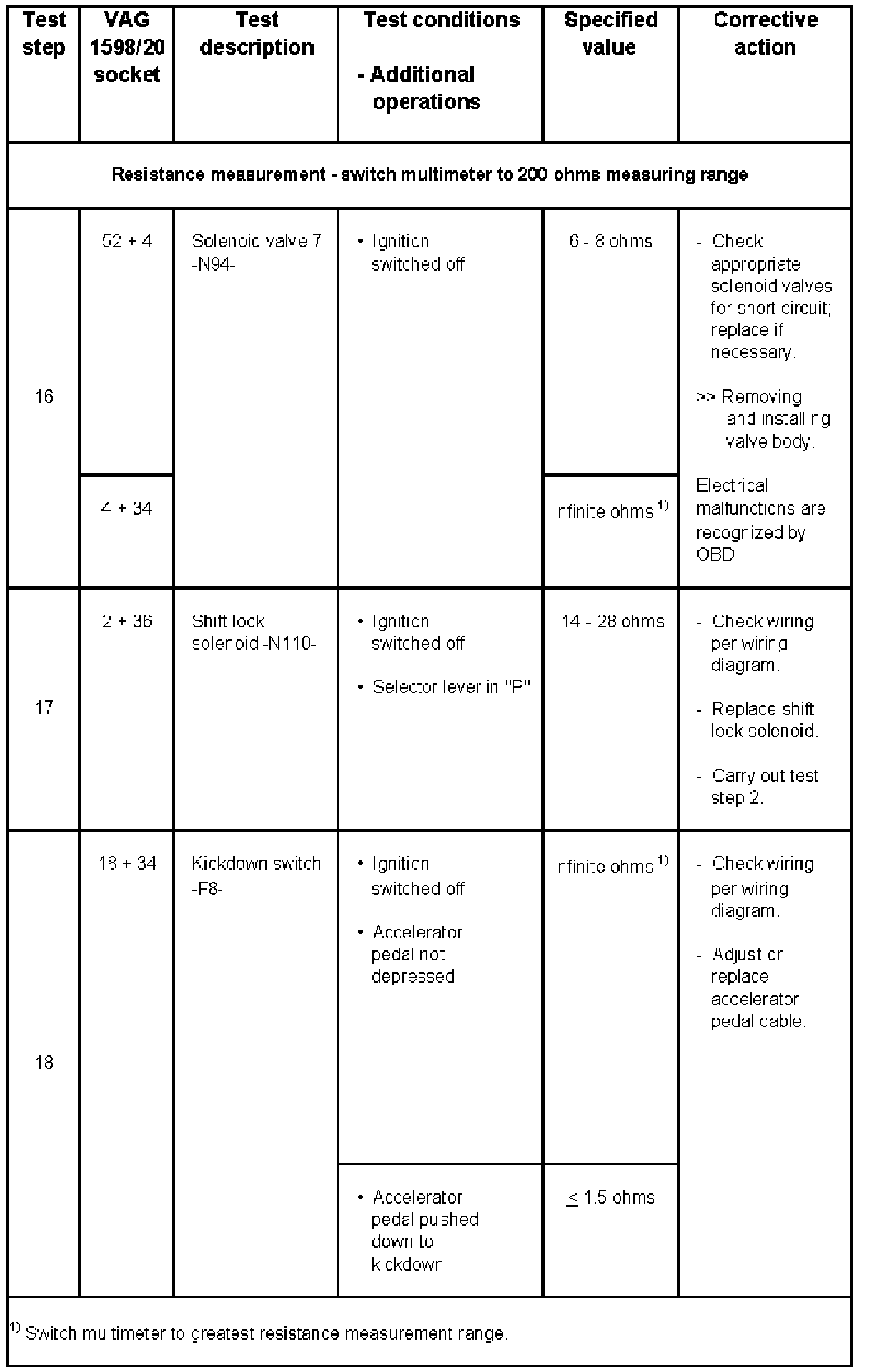

Test Step 16 - 18:

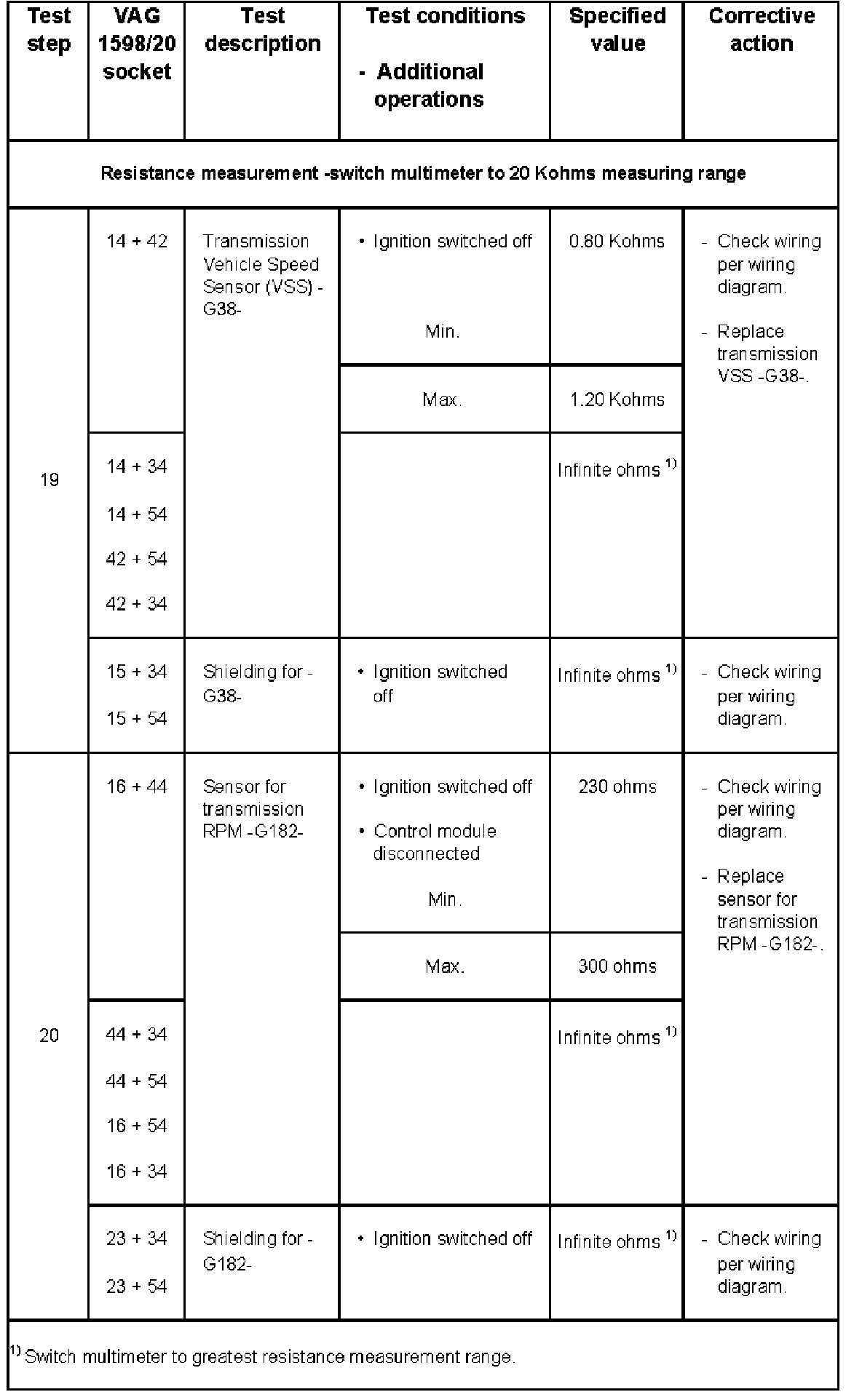

Test Step 19 - 20:

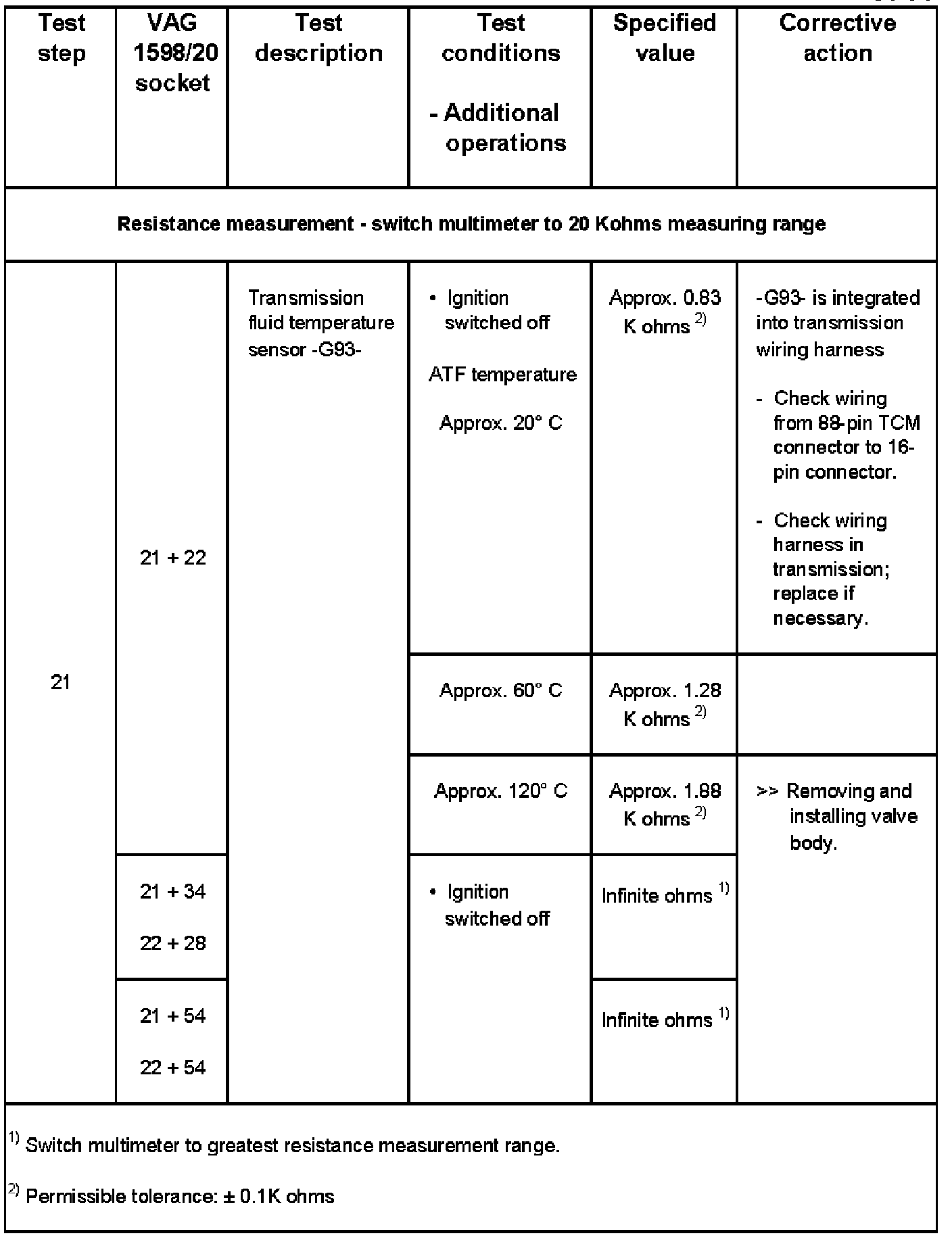

Test Step 21:

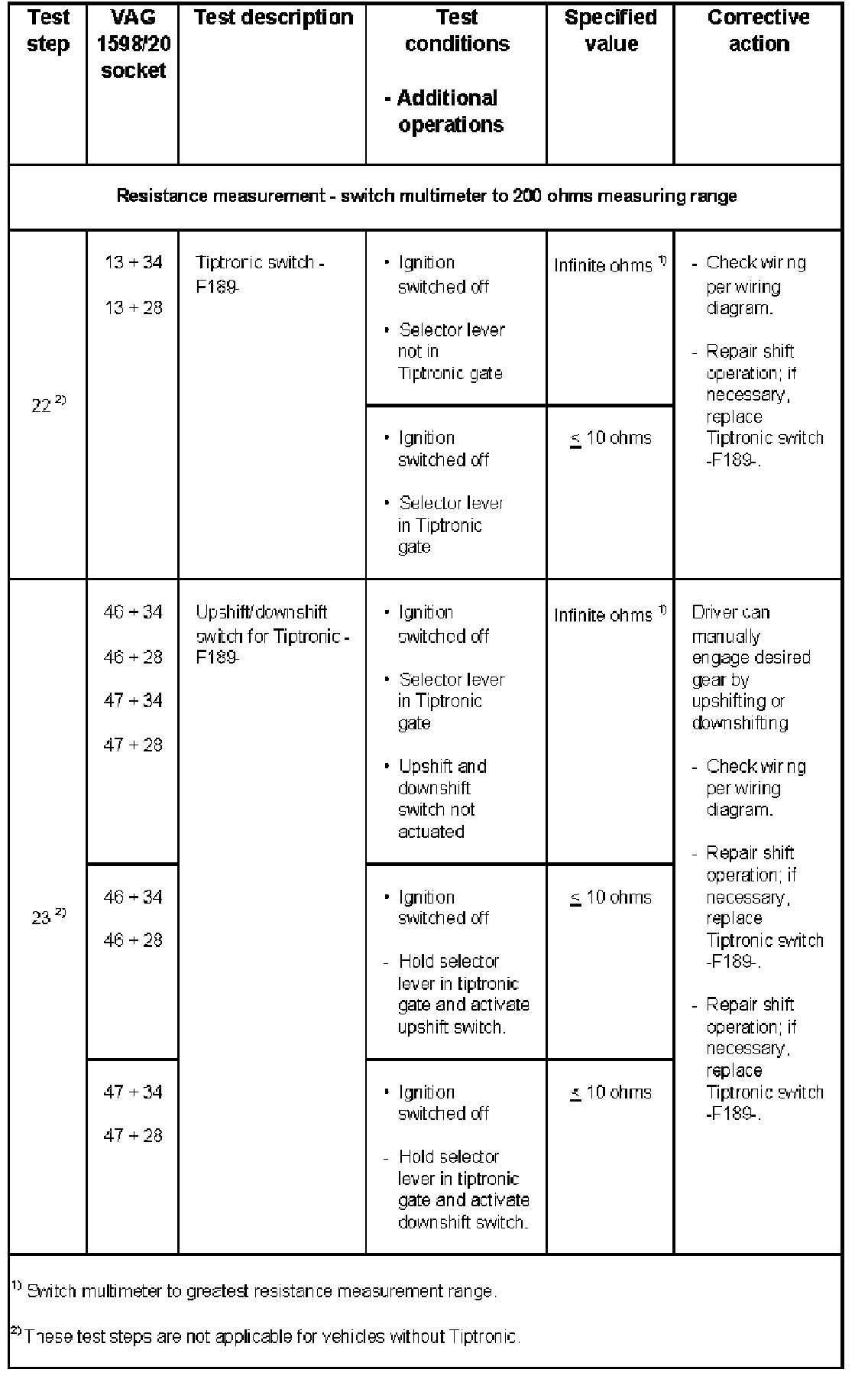

Test Step 22 - 23:






Test Step 24:

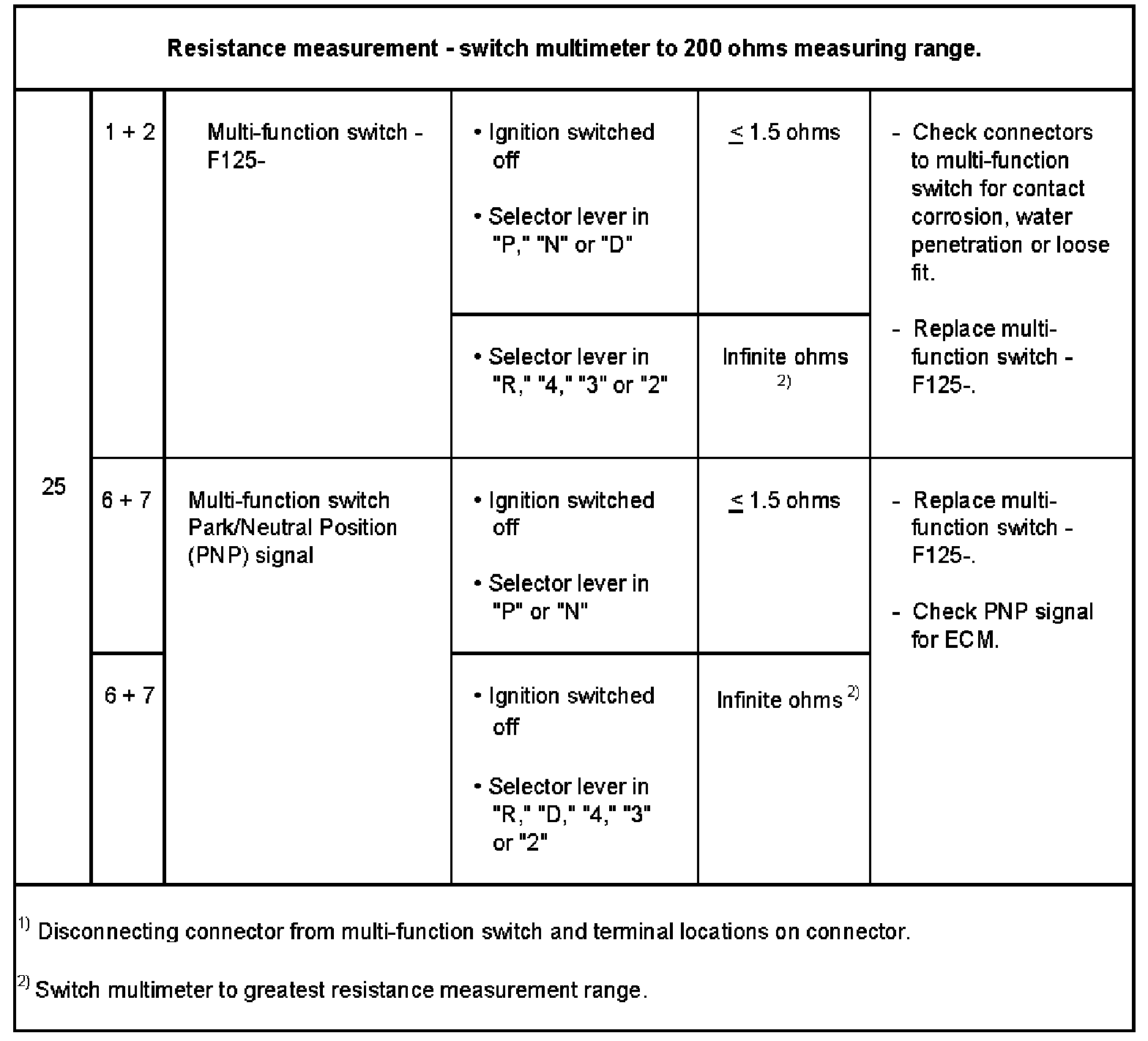

Test Step 25 Part 1:






Test Step 25 Part 2:
