Front Subframe Mount: Testing and Inspection

Subframe Mount, Checking Adjustment

- Remove the engine cover and air filter.

- Pull the EVAP canister with connected lines upward in direction of the - arrow - out of the retainer and lay it aside.

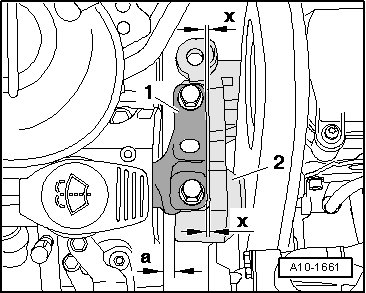

The following dimensions must be attained:

• The clearance between the engine support - 2 - and the right longitudinal member must be - a - = 16 mm.






• The casting edge of the engine support - 2 - must be parallel to the support arm - 1 - (dimension x = dimension x).

• The dimension a = 16 mm, can for example also be checked with a suitable cylindrical rod.

If a clearance dimension is too small or too large, proceed as follows:
