Fuse Box

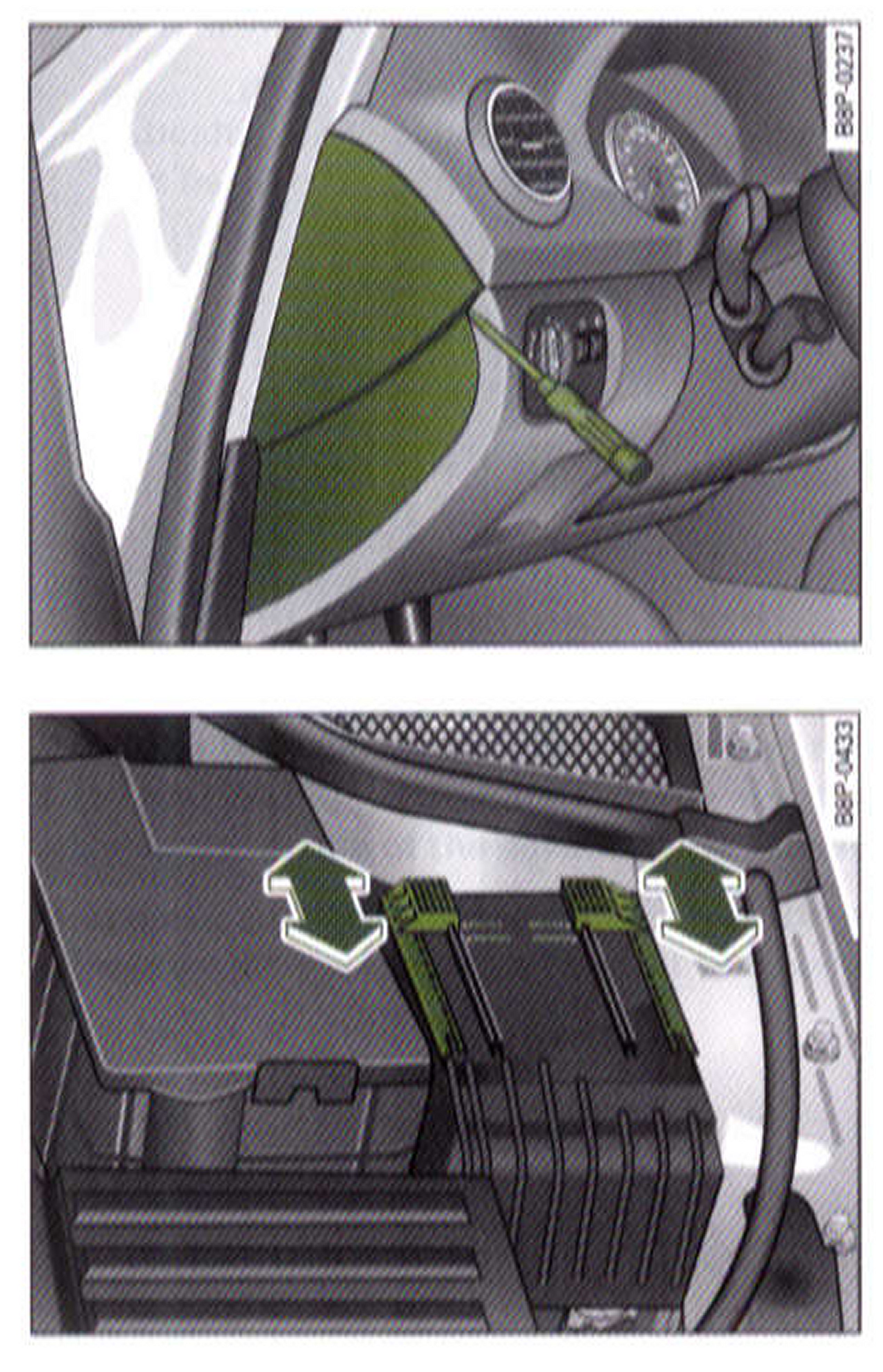

Box Locations under cover on the left end face of instrument panel and in engine compartment

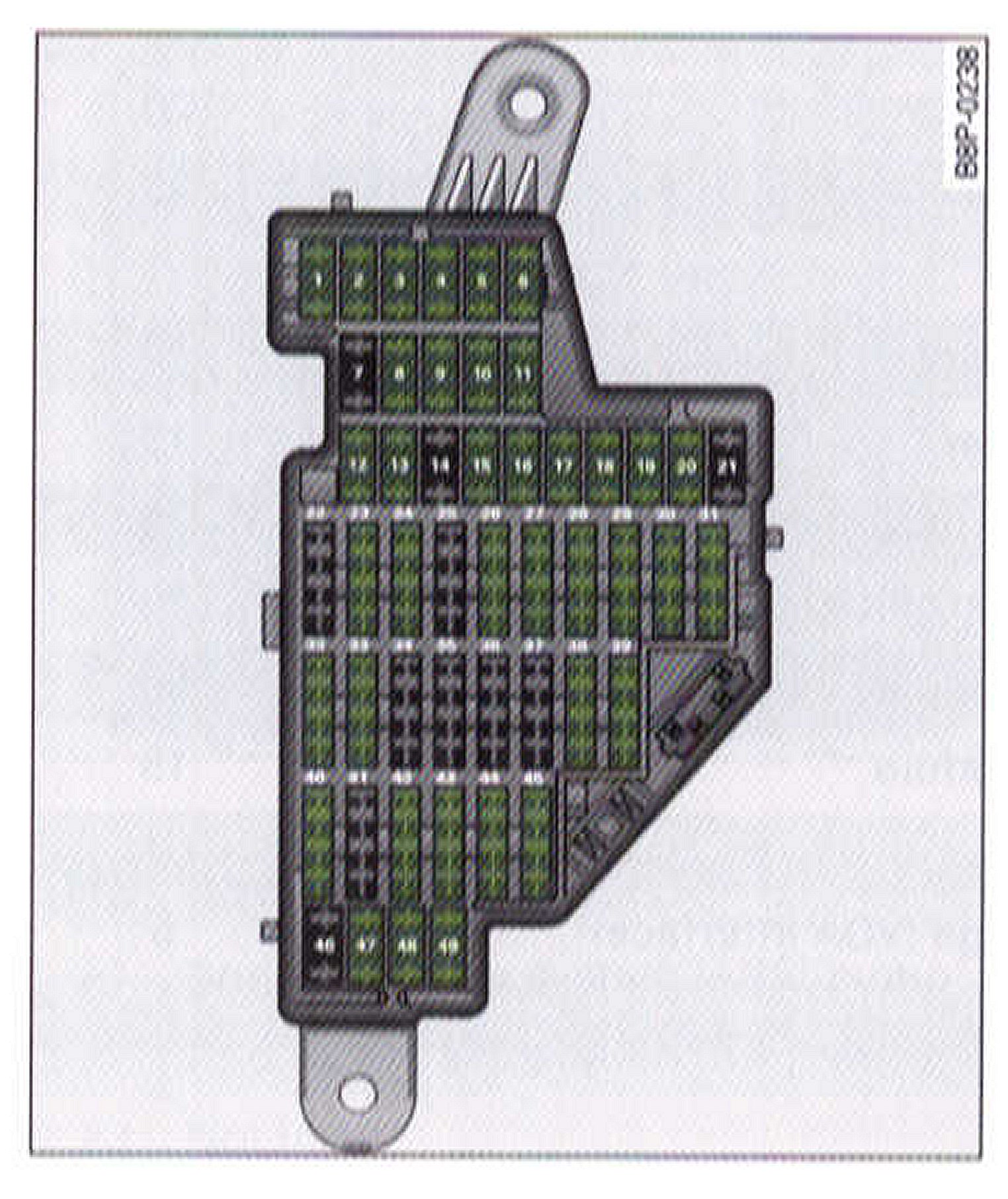

Fuse carrier behind the instrument panel end face

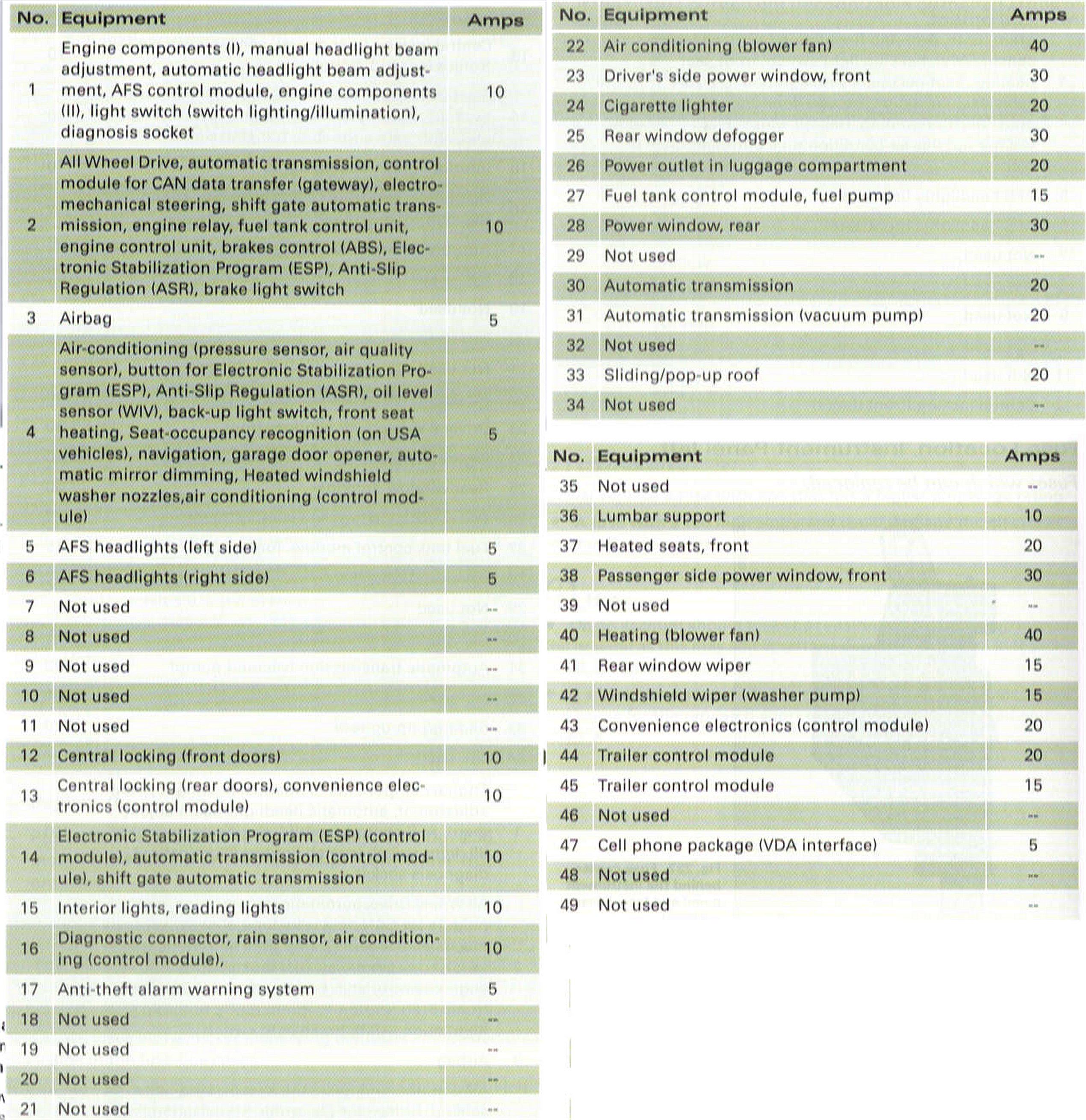

Fuse Details

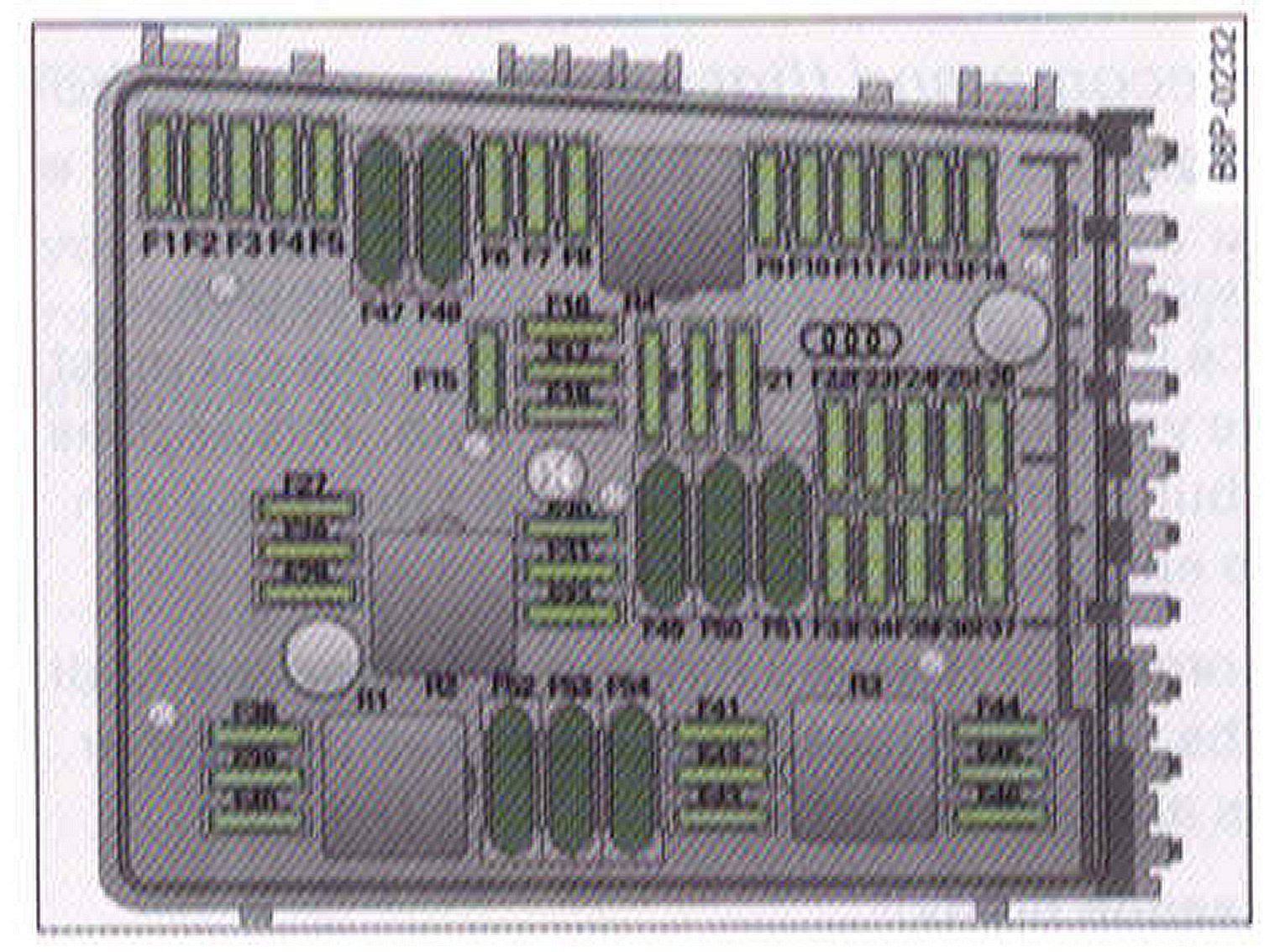

Fuse carrier on the left side of engine compartment

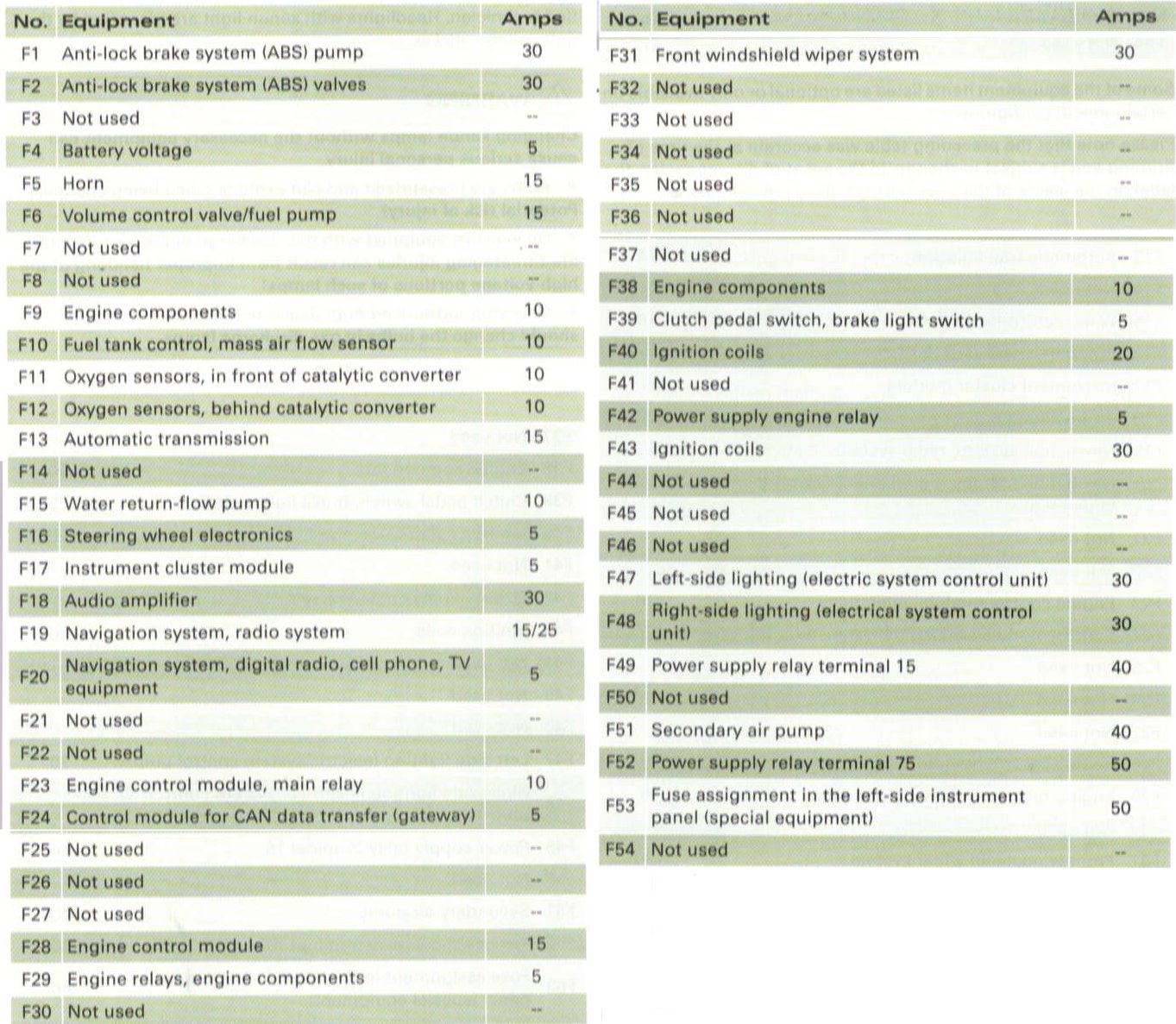

Fuse details
