Automatic Headlamp Vertical Aim Control Overview







Component Locations: Comfort Systems

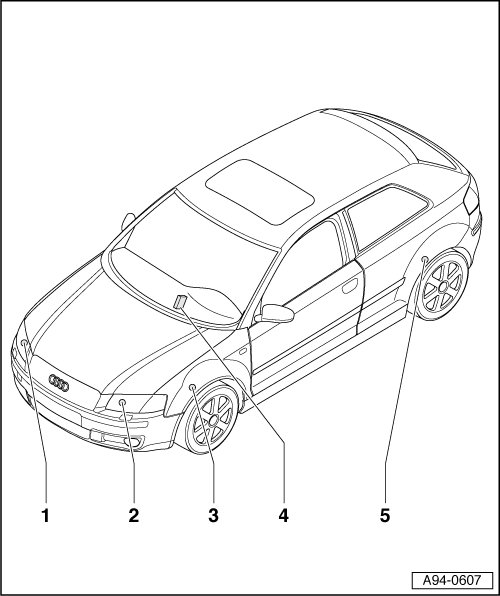

Automatic Headlamp Vertical Aim Control Overview







1 - Right Headlamp Beam Adjustment Motor -V49-
• Located inside the headlamp
• HID Headlamps Assembly Overview through 05.2008 locationLocations

2 - Left Headlamp Beam Adjustment Motor -V48-
• Located inside the headlamp
• HID Headlamps Assembly Overview through 05.2008 locationLocations

3 - Left Front Level Control System Sensor -G78-
• Located on the left front control arm

4 - Headlamp Range Control Module -J431- => [ Automatic Headlamp Range Control Module ] See Image Below.
• Located at the front of instrument panel carrier in driver side footwell

5 - Left Rear Level Control System Sensor -G76-
• Located on the left rear control arm


Automatic Headlamp Range Control
Module






1 - Headlamp Range Control Module -J431-
2 - Electrical Connector
