Exhaust Temperature Sensor: Service and Repair

Secondary Air Injection Sensor 1

Removing

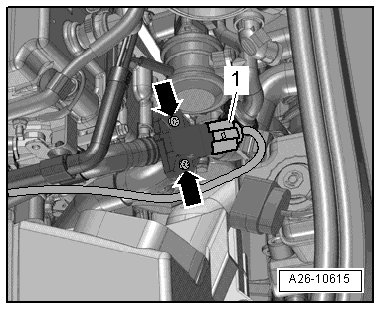

- Disconnect electrical connector - 1 -.

- Remove the bolts - arrows - and remove the secondary air injection sensor 1 (G609).

Installing

• Tightening specifications, refer to => [ Secondary Air Injection Component Overview ] Service and Repair.

Installation is in reverse order of removal, note the following:

• Replace O-ring.

Tightening Specifications
