Timing Cover






Lower Timing Chain Cover
Tighten bolts to 10 Nm
Fasten in diagonal sequence in steps

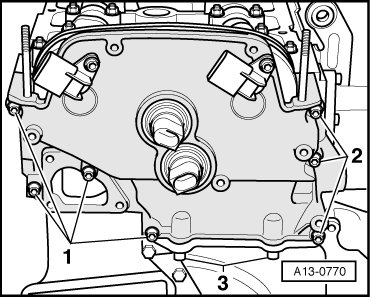

Upper Timing Chain Cover





1. Pre-tighten the bolts 1 and 2 to 5 Nm
2. Tighten the bolts 3 to 23 Nm
3. Tighten the bolts 1 and 2 to 10 Nm
