Checking Engine Oil Level

Engine Oil Level, Checking

Note:
- Minimum engine oil temperature 140°F (60 °C).
- Vehicle must be in level position.
- After stopping engine, wait a few minutes to allow oil to flow back into oil pan.

- Pull out oil dipstick and wipe with clean rag. Replace dipstick and push down to stop.
- Pull out dipstick again and read oil level.

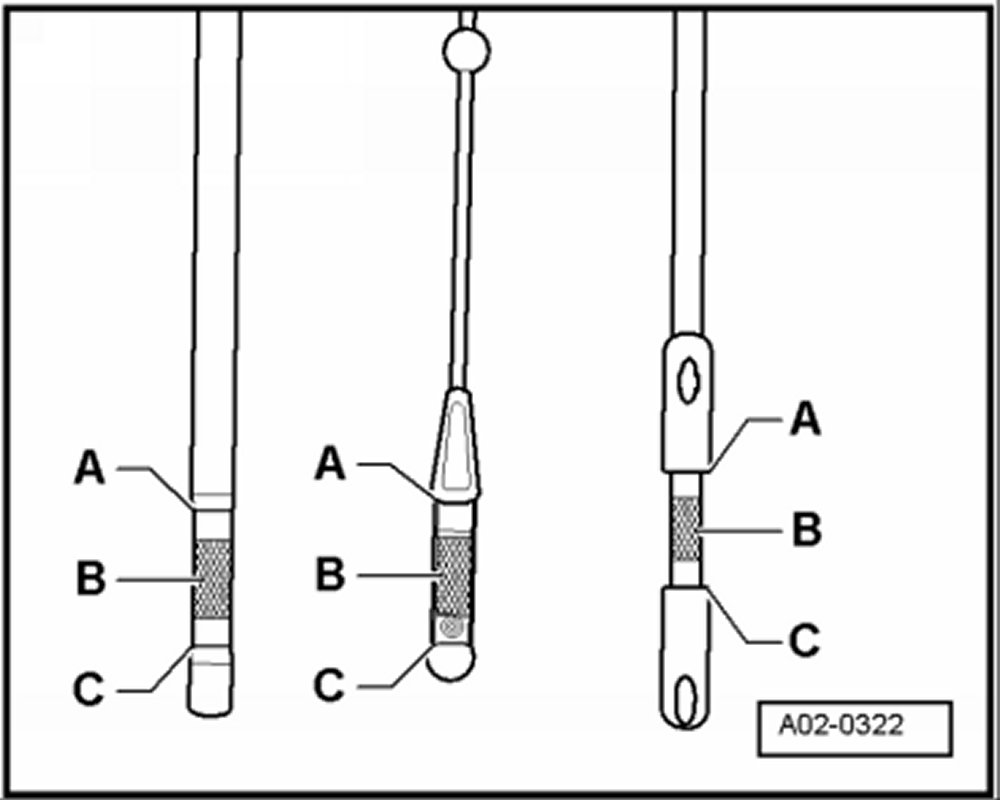

Markings on dipstick:



a - Must not be topped off.
b - Can be topped off. This will cause oil level to be in area -a-.
c - Must be topped off. It is sufficient when oil level is in area -b- (grooved field).

Note:
- Oil level must not exceed -a- mark on dipstick.
