Rear Axle Camber, Adjusting






Rear Axle Camber, Adjusting

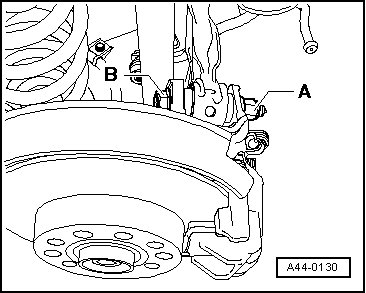

- Remove wheel bearing housing/transverse link connection nut - A -.





- Adjust camber by turning eccentric bolt - B -.

• The maximum adjustment range is 90° to left or right of center position.

• For a better illustration, camber adjustment is shown with wheel removed.

- Install new nut - A - and tighten

- After tightening nut - A -, check camber value once more. Refer to => [ Wheel Alignment Specifications ] Wheel Alignment Specifications.
