Oil Pan, Engine
Oil pan lower section
Tighten all bolts in a diagonal sequence
5 Nm
Aluminum pan
9 Nm
Metal pan
5 Nm plus 90°
Fasten bolts in a diagonal sequence

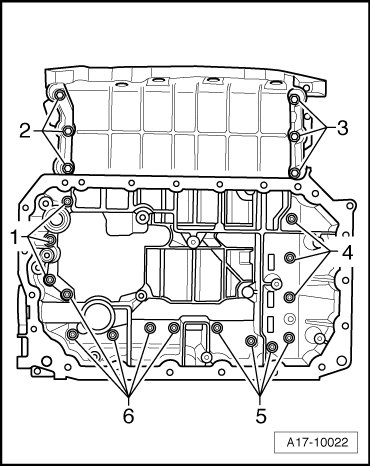

Oil Pan Upper Section
Tighten in diagonal sequence bolts 1 through 6
5 Nm
Tighten in diagonal sequence bolts 1 through 6
16 Nm
