Carbon Brush Checking, Bosch Generators From 2001

Carbon Brush Checking, Bosch Generators from 2001

Procedure





- Remove the voltage regulator, refer to one of the following:

Through MY 2007, refer to => [ Voltage Regulator, Bosch Generator from 2001 ] Voltage Regulator, Bosch Generator From 2001.

From MY 2007, refer to => [ Voltage Regulator, Bosch Generator from 2007 ] Voltage Regulator, Bosch Generator From 2007.

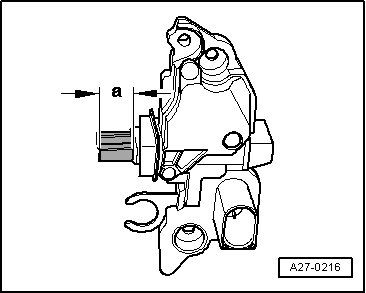

- Check the carbon brushes for length - a -.

• Wear limit: - a - = 5 mm.

- Install the voltage regulator, refer to one of the following:

Through MY 2007, refer to => [ Voltage Regulator, Bosch Generator from 2001 ] Voltage Regulator, Bosch Generator From 2001.

From MY 2007, refer to => [ Voltage Regulator, Bosch Generator from 2007 ] Voltage Regulator, Bosch Generator From 2007.
