Communications Control Module: Service and Repair







Microphone Unit in Front Roof Module (R164)

The Microphone Unit in front roof module is located in the Front Interior Light (W1) can be replaced only as a complete unit.

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove Front Interior Light.

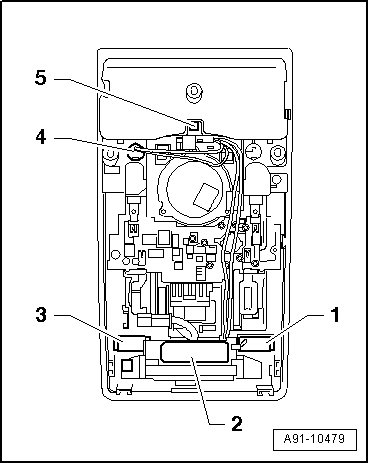

- Unclip the connector - 5 - from retainer in the Front Interior Light and disconnect the connector.





- Pry the individual microphones - 1 -, - 3 - and - 4 - out of the retainer.

Installing

- Install in reverse order of removal.
