Keyless Access Authorization System, Component Overview

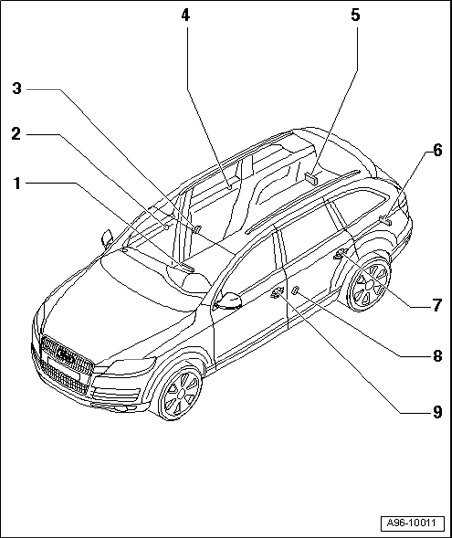

Keyless Access Authorization System, Component Overview







1. Interior Access/Start Authorization Antenna 1 R138
- Component location: Under front center console
2. Passengers side outside door handle
- Component overview
3. Front Passengers Access/Start Authorization Antenna R135
- Component location: On rear door trim
4. Right rear outside door handle
- Component overview
5. Keyless Access Authorization Antenna Reader J723
- Component location: Behind luggage compartment right side trim
6. Luggage Compartment Access/Start Authorization Antenna R137
- Component location: On left luggage compartment rear lid end panel
7. Left rear outer door handle
- Component overview
8. Drivers Access/Start Authorization Antenna R134
- Component location: On rear door trim
9. Drivers side outside door handle
- Component overview
