Data Bus On Board Diagnostic Interface Connector, From MY 09

Data Bus On Board Diagnostic Interface Connector, From MY 09

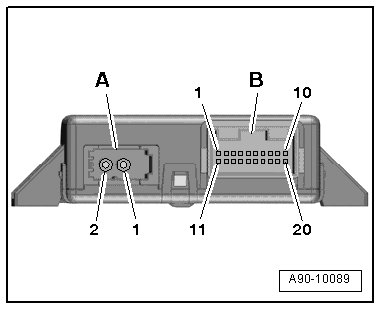

Optical MOST Bus Connection (Fiber Optic) - A -






1. Input

2. Output


- item B - 20-pin connector






1. Battery + (Terminal 30)

2. LIN 1

3. ACC

4. ESL

5. CAN bus Low (comfort)

6. CAN bus Low (drivetrain)

7. CAN bus low (extended)

8. CAN bus Low (instrument cluster)

9. CAN bus Low (diagnosis)

10. Shielding (Most diagnosis)

11. Ground - (terminal 31)

12. LIN 2

13. Instrument cluster wake-up

14. Terminal 15

15. CAN bus High (comfort)

16. CAN bus High (drivetrain)

17. CAN bus high (extended)

18. CAN bus High (instrument cluster)

19. CAN bus High (diagnosis)

20. Shielding
