Transmission Position Sensor/Switch: Description and Operation

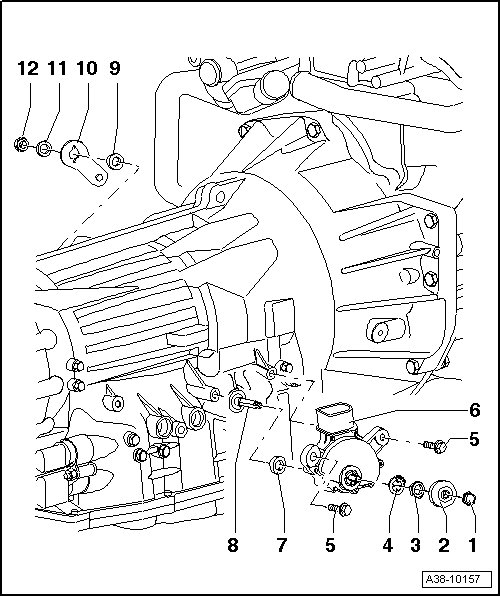

Selector Lever and Multifunction Transmission Range Switch Overview






1 Nut

• 12 Nm

2 Cover

3 Nut

• 7 Nm

4 Circlip

• Replace if damaged.

5 Bolt

• 6 Nm

6 Multifunction Transmission Range Switch (F125)

• Removing and installing, refer to => [ Multifunction Transmission Range Switch ] Multifunction Transmission Range Switch.

• Adjusting, refer to => [ Multifunction Transmission Range Switch, Adjusting ] Adjustments.

7 Right Selector Shaft Seal

• Removing and installing, refer to => [ Right Selector Shaft Seal ] Right Selector Shaft Seal.

8 Selector Shaft

9 Left Selector Shaft Seal

• Removing and installing, refer to => [ Left Selector Shaft Seal ] Left Selector Shaft Seal.

10 Selector Lever

• Removing and installing, refer to => [ Selector Lever ] Selector Lever.

11 Washer

12 Nut

• 12 Nm

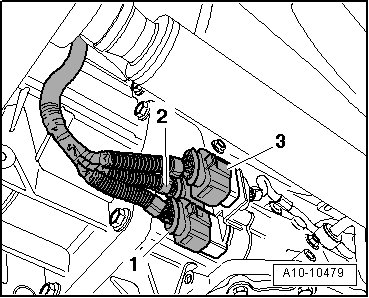

Multifunction Transmission Range Switch Connectors





The multifunction transmission range switch is connected to the wiring harness once with the connector - 3 - and once directly to the multifunction transmission range switch.

- Always check both connectors for water entry, contact corrosion and damage before replacing the multifunction transmission range switch.
