System Specifications

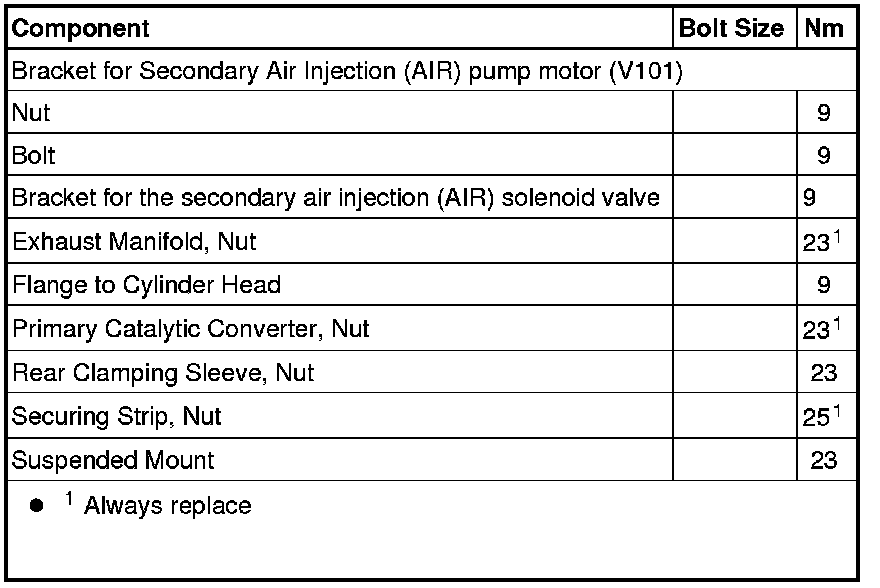

Fastener Tightening Specifications
Individual Suspension Components, Left Side
1. Bracket
2. Screws - 23 Nm
3. Bolt - 23 Nm
Individual Components of Suspension, Right Side
1. Bolt - 23 Nm
2. Bolt - 23 Nm
3. Tab
Heat Shield - Tightening Specification
- Tighten bolts - arrows - to 9 Nm.

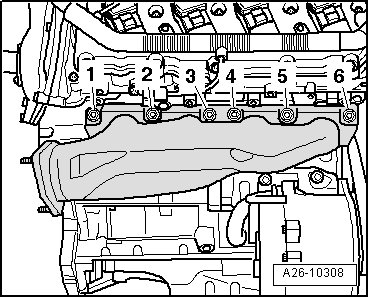

Left Exhaust Manifold Tightening Sequence

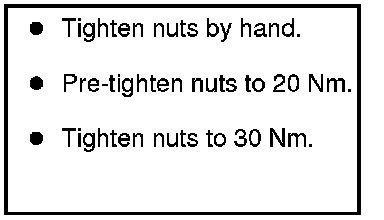

- Tighten nuts in 3 stages in - 1 to 6 - sequence as follows:

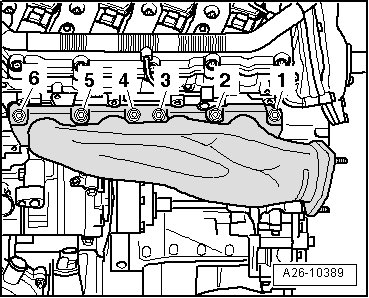

Right Exhaust Manifold Tightening Sequence
- Tighten nuts in 3 stages in - 1 to 6 - sequence as follows:
