Cylinder Block Specifications





























































Piston and Cylinder Dimensions

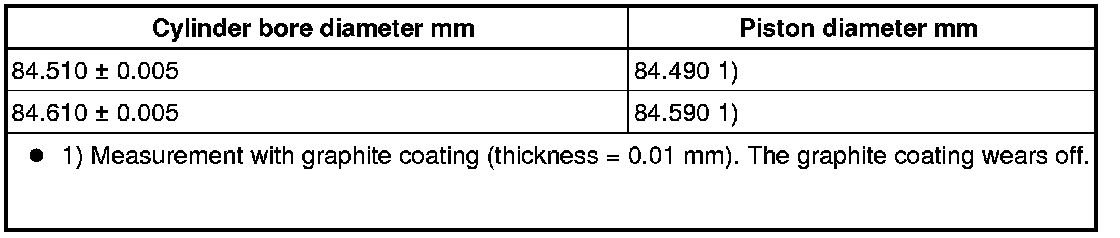

Cylinder bore
Maximum deviation from nominal dimension 0.08 mm

Piston
Maximum deviation from nominal dimension 0.03 mm

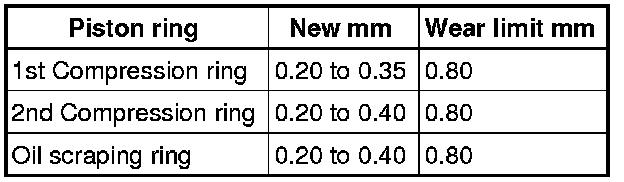

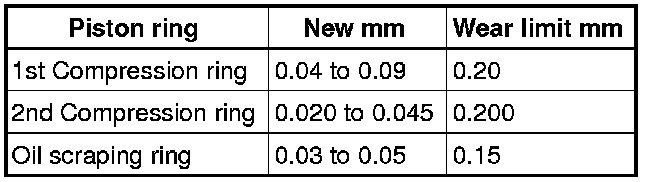

Piston Ring End Gap





Piston Ring Side Clearance





Connecting rod bearing

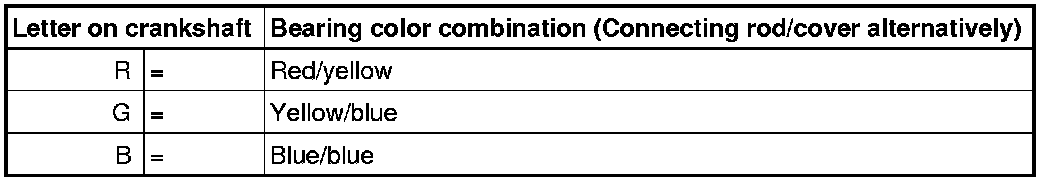

Allocation of connecting rod bearing shell thickness to crankshaft








Connecting rod
Radial clearance
New 0.020 to 0.069 mm
Wear limit 0.120 mm

Main Bearing

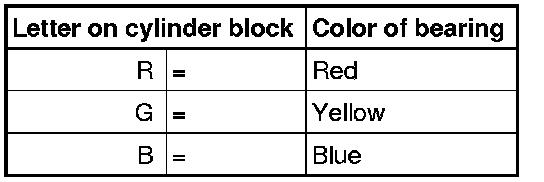

Allocation of Crankshaft Bearing Shells for Cylinder Block

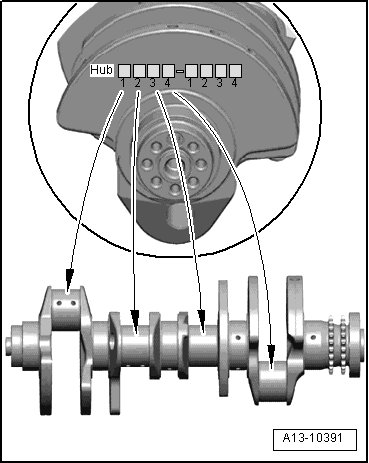

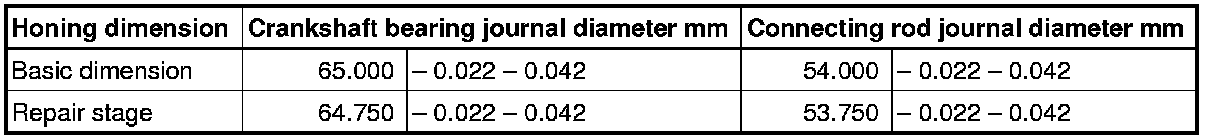

Crankshaft
Axial Clearance 0.090 to 0.251 mm

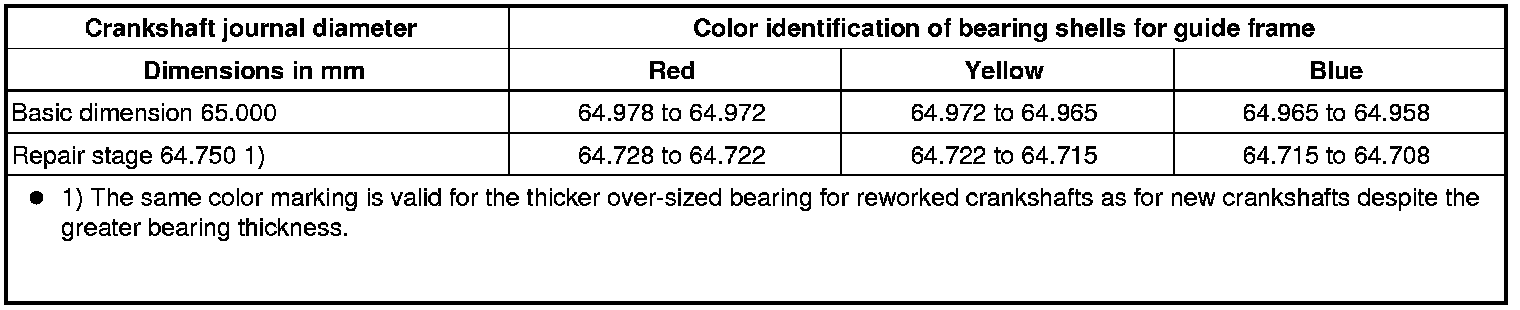

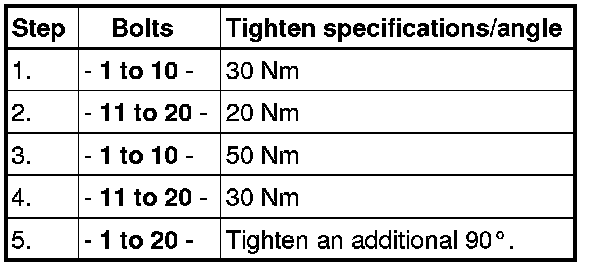

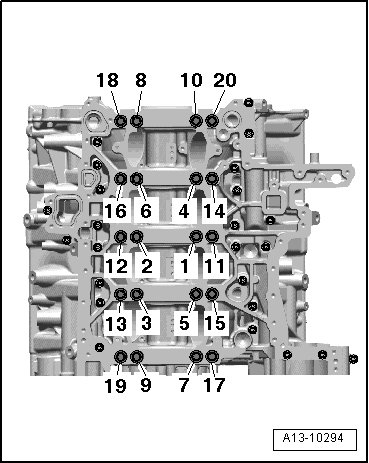

Guide frame








Vibration Damper
