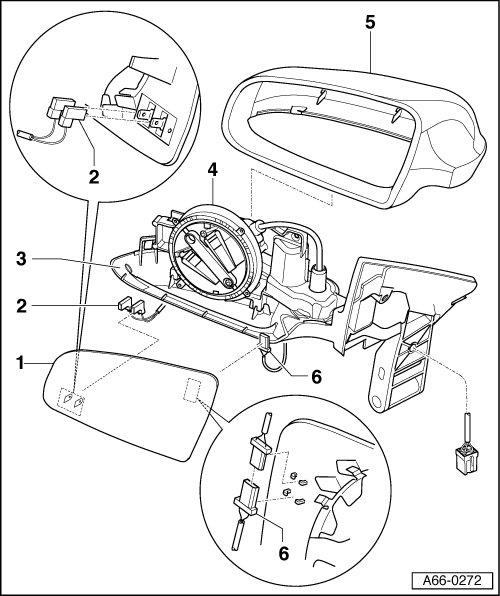

Exterior Rearview Mirror Assembly Overview

Exterior Rearview Mirror Assembly Overview

Special tools, testers and auxiliary items required

• Pry lever (80-200)





1 Mirror glass

• Use Pry Lever (80-200) to unclip.

• Protect mirror housing against damage using textile tape above and below.

• Press mirror lens first downward, then upward.

• to install mirror lens into guide pins and friction finger, insert into friction spring and press on.

• Apply pressure only on center of glass, wear protective gloves while doing so.

2 Mirror heating connector

3 Mirror adjusting unit

4 Adjusting motor

• Removal => [ Exterior Rearview Mirror Adjusting Motor ] Service and Repair.

5 Mirror housing

• May be removed from door without removing entire exterior rearview mirror => [ Exterior Rearview Mirror Housing ] Exterior Rearview Mirror Housing.

6 Electrical connection

• Clip into mirror glass on rear side.
