Fuse Overview






Fuses

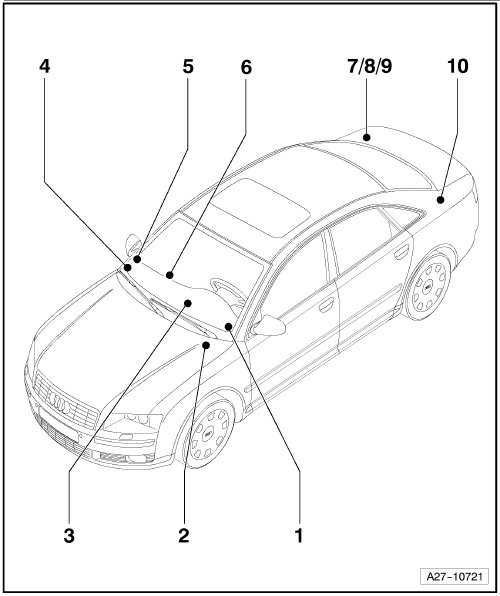

Fuse Overview







1 - Fuses (SB) on Fuse Holder, Instrument Panel, left
• Component Location => Pic. Page => [ Mounting Position of Fuses (SB) ] Mounting Position of Fuses (SB)
• Fuse Position => Pic. Page => [ Fuses in Fuse Holder, Instrument Panel left ] Mounting Position of Fuses (SB)

2 - Relay and Fuse Holder (S) in E-Box plenum chamber
• Fuse Position => Pic. Page => [ Relay and Fuse Panel in E-Box plenum chamber ] Relay and Fuse Panel in E-Box Plenum Chamber

3 - Relay and Fuse Holder (S) behind Instrument Panel, left
• Fuse Position => Pic. Page => [ Relay and Fuse Panel behind Instrument Panel, left ] Relay and Fuse Panel Behind Instrument Panel, Left

4 - Fuses (SC) on Fuse Holder, Instrument Panel, right
• Component Location => Pic. Page => [ Mounting Position of Fuses (SC) ] Mounting Position of Fuses (SC)
• Fuse Position => Pic. Page => [ Fuse in Fuse Holder, Instrument Panel right ] Mounting Position of Fuses (SC)






5 - Fuses (S) on Main Fuse Holder, on A-pillar right
• Fuse Position => Pic. Page => [ Main Fuse Panel A-Pillar right ] Main Fuse Panel A-Pillar Right

6 - Relay and Fuse Holder (S) in Front Footwell, right
• Fuse Position => Pic. Page => [ Relay and Fuse Panel in Front Footwell, right ] Relay and Fuse Panel in Front Footwell, Right

7 - Relay and Fuse Holder in Luggage Compartment, right
• Fuse Position => Pic. Page => [ Relay and Fuse Panel in Luggage Compartment, right ] Relay and Fuse Panel in Luggage Compartment, Right

8 - Relay and Fuse Holder in Luggage Compartment, right, Fuses
• Fuse Position => Pic. Page => [ Relay and Fuse Panel in Luggage Compartment, right ] Relay and Fuse Panel in Luggage Compartment, Right

9 - Relay and Fuse Holder (SF) in Luggage Compartment, right, Fuses
• Fuse Position through m.y. 2003 => Pic. Page
• Fuse Position from m.y. 2004 => Pic. Page => [ Relay and Fuse Panel (SF) in Luggage Compartment, right ] Relay and Fuse Panel (SF) in Luggage Compartment, Right

10 - Fuses (SD) on Fuse Holder in Luggage Compartment, left
• Fuse Position through m.y. 2003 => Pic. Page
• Fuse Position from m.y. 2004 => Pic. Page => [ Fuse Panel (SD) in Luggage Compartment, left ] Fuse Panel (SD) in Luggage Compartment, Left
