Timing Cover

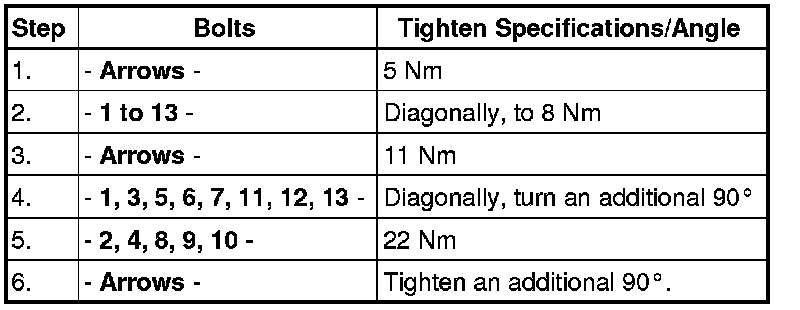

Lower Timing Chain Cover Bolts
Replace bolts 1, 3, 5, 6, 7, 11, 12 and 13 - and - arrows









Left and Right Timing Chain Cover Bolts 9 Nm
