System Specifications

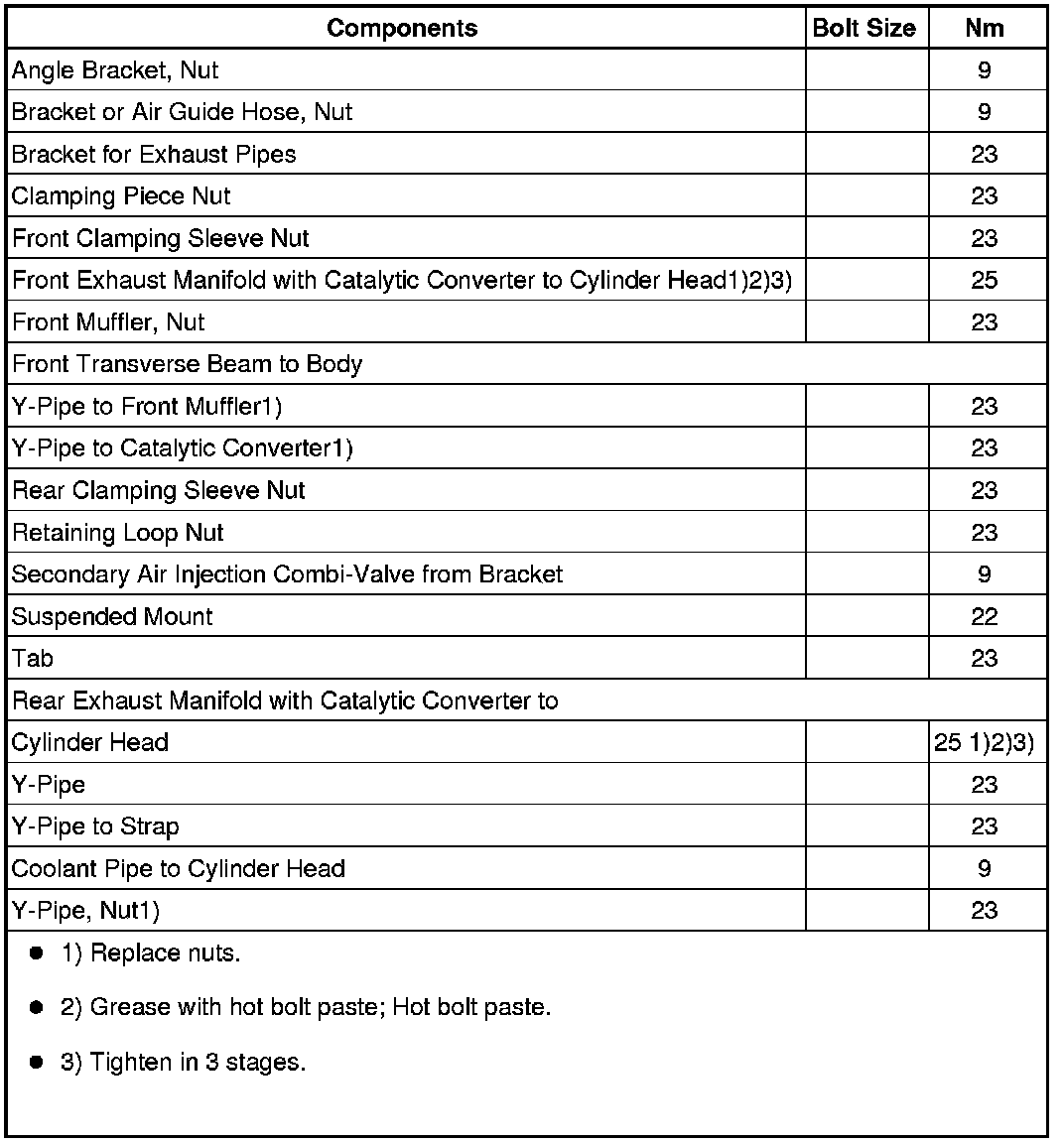

Fastener Tightening Specifications -

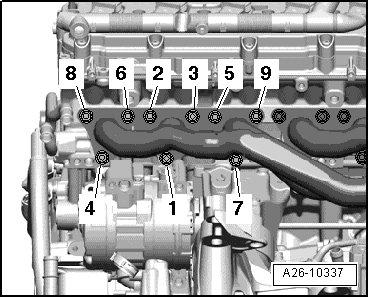

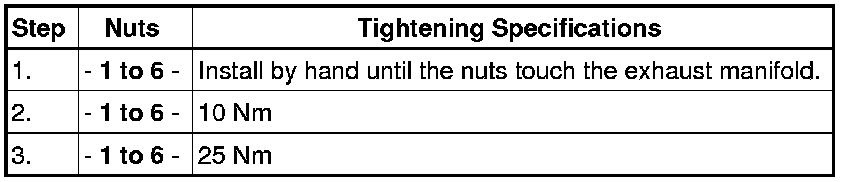

Tighten the left rear
exhaust manifold nuts in three steps in the specified tightening sequence:
-
Position left front
exhaust manifold with
catalytic converter on cylinder head and tighten nuts by hand.
-

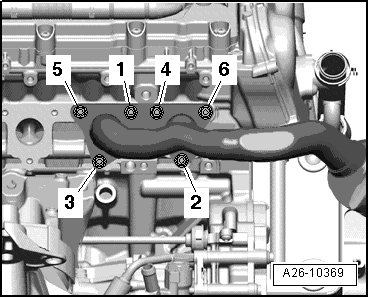

Tighten the left front
exhaust manifold nuts in three steps in the specified tightening sequence:
