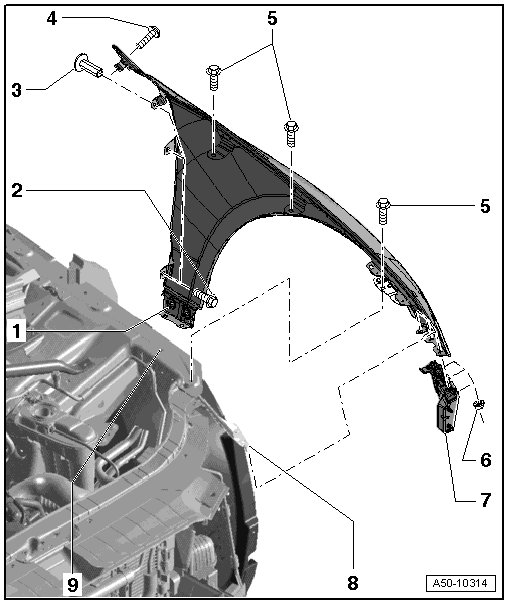

Fender Assembly Overview

Fender Assembly Overview






1 Fender

• Removing

- Remove the drip railing. Refer to Water Deflector, Removing => [ Water Deflector, Removing ] Windshield Assembly Overview.

- Remove plenum chamber cover. Refer to => [ Plenum Chamber Cover ] Plenum Chamber Cover.

- Remove front bumper.

- Remove headlight.

- Remove wheel housing liner. Refer to => [ Front Wheel Housing Liner ] Service and Repair.

- End plate, removing

- Remove the bolts - 2 - and - 4 - and nuts - 7 - and the fender.

• Installing

Installation is reverse of removal.

2 Bolt

• 8 Nm

3 Bolt

• 8 Nm

4 Bolt

• 8 Nm

5 Bolt

• 8 Nm

6 Nut

• 4 Nm

7 Fender Mount

8 Brace
