Keyless Access Authorization Antenna Reader







Keyless Access Authorization Antenna Reader

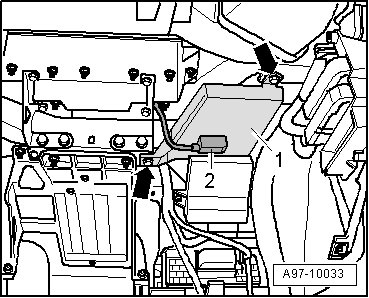

Removing

- Switch off ignition and remove ignition key.

- Remove glove compartment.

- Remove bolts - arrows -.





- Disconnect electrical connector - 2 -.

- Remove keyless access authorization antenna reader (J723) - item 1 -.

Installing

Install in reverse order of removal, observing the following:

- Install glove compartment.

Tightening Specifications
