Left/Right Rear Outside Door Handle Central Locking Button

Left/Right Rear Outside Door Handle Central Locking Button

Removing

- Remove outside door handle.

- Remove mounting bracket.

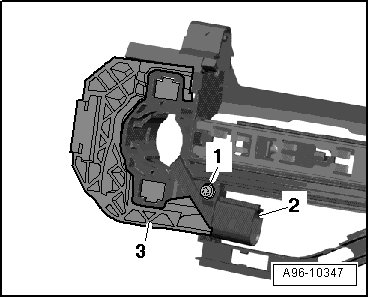

- Remove bolt - 1 -.





- Remove rear outside door handle central locking button - 2 - from mounting bracket - 3 -.

Installing

• Tightening specification, refer to => [ Keyless Access Authorization System Outside Door Handle Assembly Overview ] Keyless Access Authorization System Outside Door Handle Assembly Overview.

Install in reverse order of removal, observing the following:

- Install mounting bracket.

- Install outside door handle.
