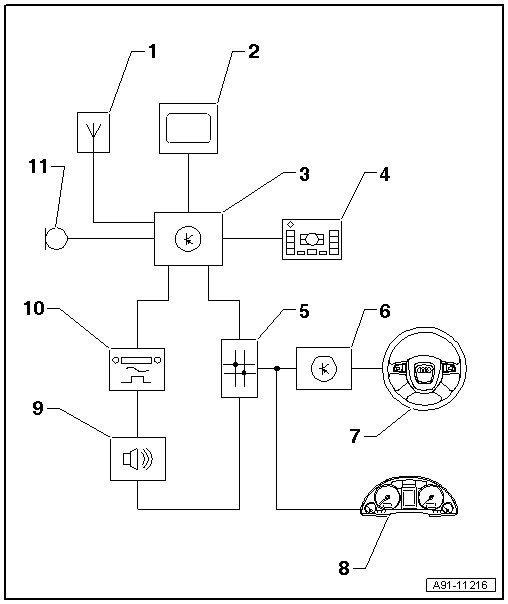

Navigation System, Maximum Equipment from September 2008 Overview






Navigation System, Maximum Equipment from September 2008 Overview





1 Roof Antenna (R216) (GPS/GSM/RC)

2 Front Information Display Control Head (J685) in Center Instrument Panel

3 information Electronics Control Module 1 (J794) inside Glove Compartment on Left Side

4 Multimedia Control Head (E380) in Lower Center Console

5 Data Bus On Board Diagnostic Interface (J533) behind Glove Compartment

6 Steering Column Electronic Systems Control Module (J527) on Steering Column at Steering Column Switches

7 Multifunction Steering Wheel

8 Instrument Cluster Control Module (J285) (Instrument Cluster) in Instrument Panel

9 Digital Sound System Control Module (J525) behind Left Luggage Compartment Side Trim

10 Radio (R) behind Left Luggage Compartment Side Trim

11 Microphone Unit in Front Roof Module (R164) (Right Front Microphone (R141)) inside Front Interior Light (W1)
