Multimedia Control Head Decorative Frame







Multimedia Control Head Decorative Frame

Removing

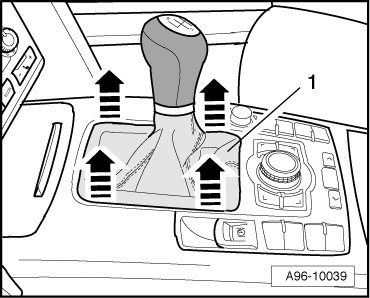

- Unclip shift or selector lever boot - 1 - on both sides and pull up to remove - arrows -.

- Pull shift lever or selector lever boot up.

Vehicles with automatic transmission:





- Release retaining spring - 2 - and remove selector chart - 1 - - arrow -.

- Disconnect electrical connector.

All:

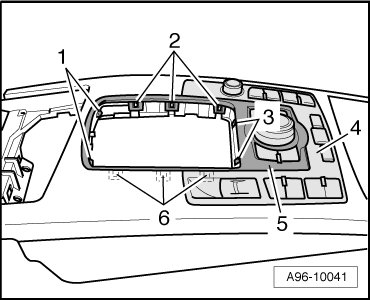

- Carefully release clips - 1 to 3 - and - 6 - on Multimedia Control Head (E380) decorative frame - 5 - with a narrow screwdriver.

- Lift decorative frame off from center console and Multimedia Control Head (E380) - Item 4 -.

Installation

Installation is reverse of removal, but note the following:

- Push decorative frame down until locking tabs engage.
