Memory Seat Control Head







Memory Seat Control Head

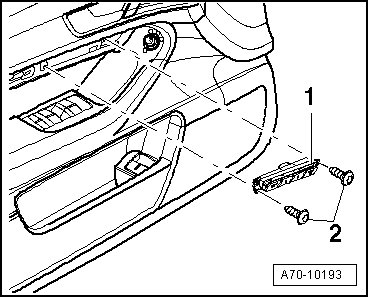

• Removing

- Remove the screws - 2 - (2x).

- Remove control unit - 1 -.

- Disconnect connector.

• Installing

Installation is in reverse order of removal. Be sure to note the following:

• Tightening specification for the bolts - 1 -: 1 Nm
