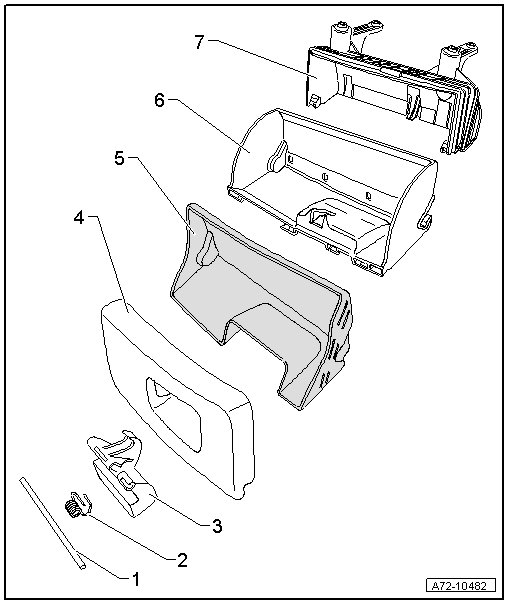

Storage Compartment Individual Components Assembly Overview

Storage Compartment Individual Components Assembly Overview





1 Axle

• For handle with locking mechanism => [ (Item 3) Handle with Locking Mechanism ]

2 Torsion spring

• As a replacement part only with handle with locking mechanism => [ (Item 3) Handle with Locking Mechanism ] and axle => [ (Item 1) Axle ]

3 Handle with Locking Mechanism

• As replacement part handle with locking mechanism, axle => [ (Item 1) Axle ] and torsion spring => [ (Item 2) Torsion spring ]

4 Trim

• Clipped with inner part

5 Insert

6 Inner Part

• As replacement part only with outer part, refer to => [ (Item 7) Outer Part ]

7 Outer Part

• As replacement part only with inner part, refer to => [ (Item 6) Inner Part ]
