Adaptive Cruise Control Sensor with Frame






Adaptive Cruise Control Sensor with Frame

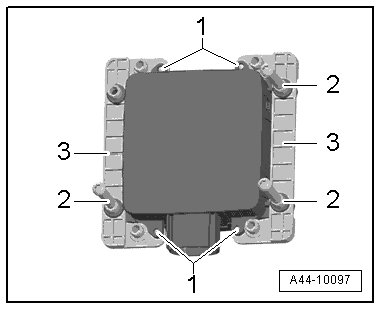

Disassembling

- Remove the adaptive cruise control sensor (G550). Refer to=> [ Adaptive Cruise Control Sensor ] Removal and Replacement.

- Remove the stud bolt - 2 - from the frame - 3 -.






- Remove the bolts - 1 - and the frame from the adaptive cruise control sensor.

Assembling

Assembly is performed in the reverse order of removal. Note the following:

- Adjust all stud bolts to dimension - a -.






Dimension - a - must be 34 mm.

Tightening specifications, refer to => [ Adaptive Cruise Control Sensor Assembly Overview ] Adaptive Cruise Control Sensor Assembly Overview.
