Connectors, External Audio Source Connection, AMI MMI

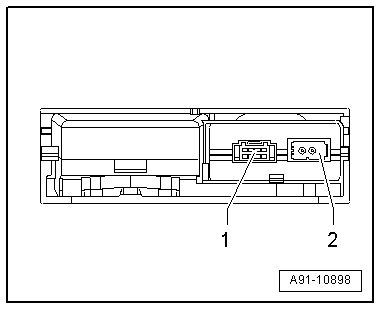

External Audio Source Connection, AMI MMI External audio source connection (R199) 1. Black 8-pin connector
2. MOST Bus
•
Unlisted connector terminals are not assigned.

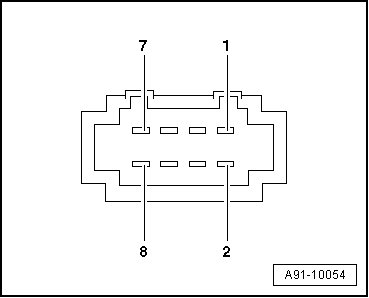

1 - Black 8-pin multi-pin harness connector 1. Terminal 31
2. Terminal 30
3. Not used
4. Terminal 31
5. Ring-break diagnostic wire
2 - MOST Bus 1. Input
2. Output
