Rearview Camera System Control Module

Rearview Camera System Control Module

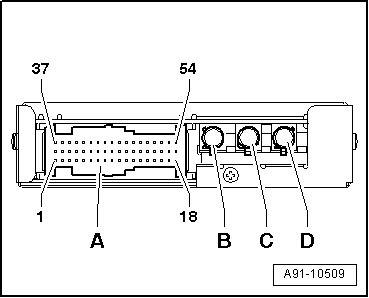

Rear View Camera System Control Module (J772)





A Black 54-pin connector (T54b)
B FBAS input (brown) from TV tuner (R78) (through 29 August 2008)
not assigned (from 1 September 2008)
C FBAS output (green) to front information display control head control module (J523) (through 29 August 2008)
FBAS output (green) to information electronics control module 1 (J794) (from 1 September 2008)
D FBAS input (gray) from rear view camera (R189)

• Unlisted connector terminals are not assigned.

A - Black 54-pin connector (T54b)





39 CAN-Bus Low (comfort)
40 CAN-Bus High (comfort)
43 Terminal 30
44 Terminal 31
47 Terminal 31 to rear view camera
48 Voltage supply rear view camera
