Climatronic Control Module A/C Control Head Basic Version






Climatronic Control Module A/C Control Head Basic Version

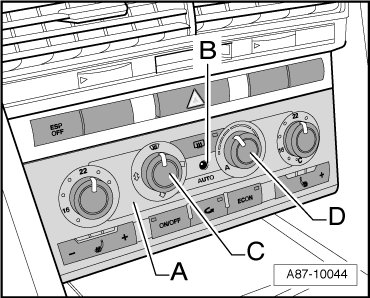

• The Climatronic Control Module (J255) A/C control head "Basic" version - A - is available in the following variants (with or without buttons for heated seats, for vehicles with left or right-hand steering, with a temperature scale in °C or °F).





• On the Climatronic Control Module (J255) A/C control head "Comfort" version - A -, both control knobs cannot be pulled off and replaced individually.

• If the temperature and sunshine infrared sensor - B - produces a faulty measurement (installed only in the Climatronic Control Module (J255) A/C control head "Basic" version - A -), check the Climatronic Control Module (J255) A/C control head. The temperature and sunshine infrared sensor - B - has to be clean.

• With the Climatronic Control Module (J255) A/C control head "Basic" version, "air distribution" is controlled automatically via a characteristic curve when rotary switch - C - is in position "A". Fresh air blower speed is automatically regulated when rotary switch - D - is in position "A".
