Rear Axle Camber, Adjusting

Rear Axle Camber, Adjusting

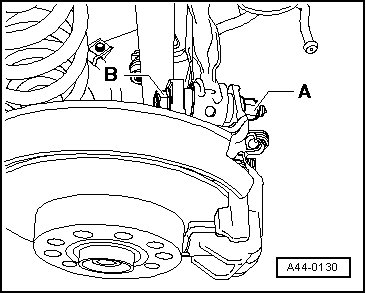

- Remove the nut - A - of threaded connection of wheel bearing housing/control arm, and screw on new nut until stop.






- Adjust camber by turning eccentric screw - B -.

Axle alignment specified values, refer to => [ Wheel Alignment Specified Values ] Wheel Alignment Specified Values.

• The maximum adjustment range is 90° to left or right of center position.

• If it is not possible to set the specified camber value by turning the eccentric bolt, there may be a deformation of the upper control arm. Aligning upper control arm.

• For a better illustration, camber adjustment is shown with wheel removed.

- Tighten nut - A -.

- After tightening nut - A -, check camber value once more. Refer to => [ Wheel Alignment Specified Values ] Wheel Alignment Specified Values.

Aligning Upper Control Arm

- Remove upper control arm. Refer to => [ Upper Transverse Link ] Upper Transverse Link.

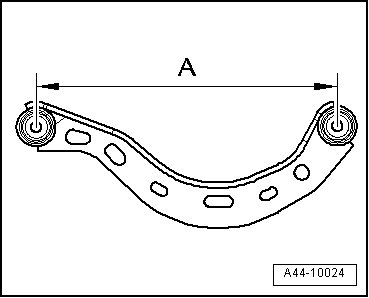

- Check dimension - A -.






- Replace upper control arm if measured dimension - A - is less than 337 mm.
