Rear Axle Toe, Adjusting

Rear Axle Toe, Adjusting

- Remove the plastic nut - 1 - and press plastic cover - 2 - lightly downward - arrow -.

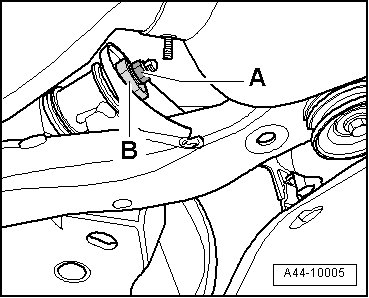

- Remove the nut - A - of threaded connection of trapezium control arm/subframe, and screw on new nut until stop.






- Set toe accordingly by turning adjustment screw - B - 36 mm.

Axle alignment specified values, refer to => [ Wheel Alignment Specified Values ] Wheel Alignment Specified Values.

- Tighten nut - A -.

- After tightening nut - A -, check toe value once more. Refer to => [ Wheel Alignment Specified Values ] Wheel Alignment Specified Values.

• The maximum adjustment range is 90° to left or right of center position.

• The geometric drive axle is automatically changed when individual toe settings are changed.
