Wheel Alignment Specified Values

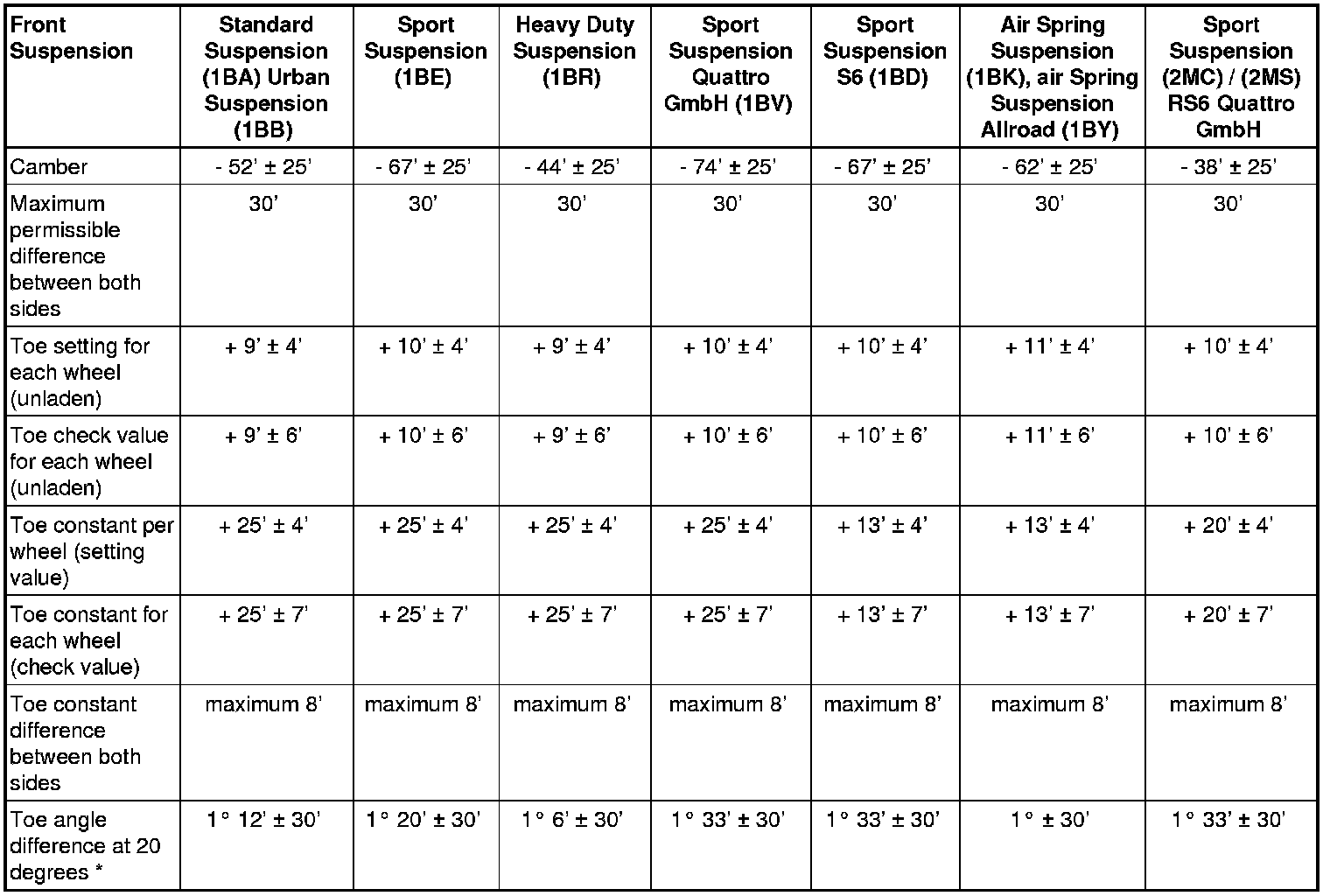

Wheel Alignment Specified Values

• Specifications valid for all engine versions

* Wheel stop on outer wheel is reduced by this amount. It can also be indicated negatively in alignment computer, depending on manufacturer.

Additional vehicle data:

This additional vehicle data only serves for a faster diagnosis in the case of accidents.

Table, refer to => [ Chassis ] Chassis and => [ Steering ] Steering.

Specified values valid for all engine versions.
