Fuses On Vehicle Electrical System Control Module -J519-






Fuses

Fuses on Vehicle Electrical System Control Module -J519-

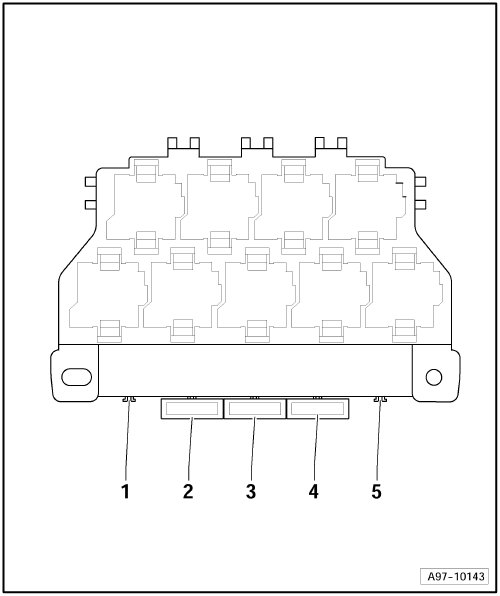

Position of fuses on fuse panel







1 - Not used

2 - Window Regulator Single Fuse 2 -S280- (30A)
• Through October 2005

2 - Heating Element Fuse 1 -S276- (40 A)
• from June 2007

3 - Driver's Power Seat Adjustment Circuit Breaker 1 -S44- (30A), Driver's Power Seat Adjustment Circuit Breaker 1 -S44- (lumbar support only 10A)
• Not applicable from model year 2007
• Models from model year 2007 => [ Position of fuses on fuse panel (left-hand drive), from model year 2007 ] Fuses Behind Driver's Storage Compartment

4 - Window Regulator Single Fuse -S37- (30A)
• Through October 2005

5 - Heating Element Fuse 2 -S277- (50 A)
• from June 2007
