Assignment Electronics Box in Right Plenum Chamber

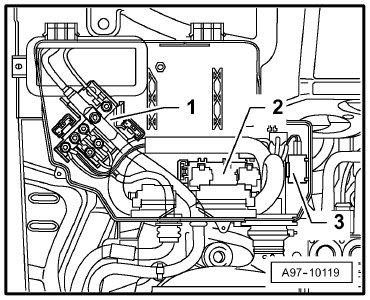

Connector stations and connectors of wiring harnessesAssignment electronics box in right plenum chamberComponent Location: 1 - Main fuse carrier
2 - 4-point relay and fuse carrier
3 - Suppressor -C24-
Note:: •
The suppressor -C24- is connected between ground and connection 1 on main fuse carrier.
