Left Instrument Panel Fuse Holder, Removing and Installing







Left Instrument Panel Fuse Holder, Removing and Installing

Removing





- With ignition switched off, disconnect battery Ground (ND) wire => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove lower instrument panel cover on driver's side.

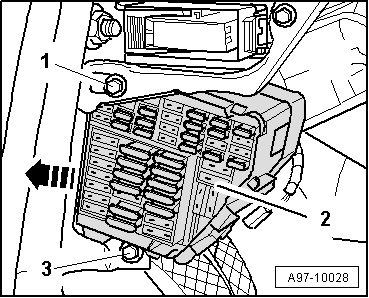

- Remove bolt - 1 -.

- Loosen bolt - 3 - two rotations.

- Slide fuse panel - 2 - in - direction of arrow - off of central tube for instrument panel.

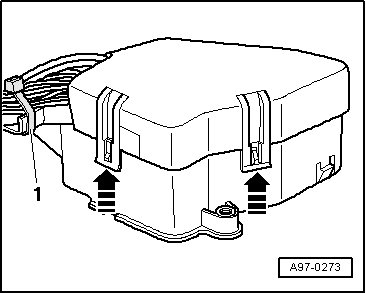

- Cut cable tie - 1 -.





- Release cover for fuse panel - arrows -.

- Remove fuses on fuse panel.

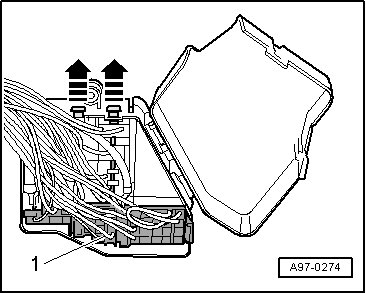

- Pull off retaining strip for harness connectors - arrows - and remove harness connectors from fuse panel.





- Unclip socket - 1 -.

• For the exact assignment of instrument panel fuse panel refer to the current wiring diagram.

Installing

Install in reverse order of removal, observing the following:

• When installing, install cable ties at same location.

- Install lower instrument panel cover on driver's side.

- Connect battery. Required actions => [ Vehicles with : ] Battery, Disconnecting and Connecting.
