Camshaft Position Sensor (G40)/(G163), Intake Side






Camshaft Position Sensor (G40)/(G163), Intake Side

Removing

- Remove the front engine cover - bottom arrows -.

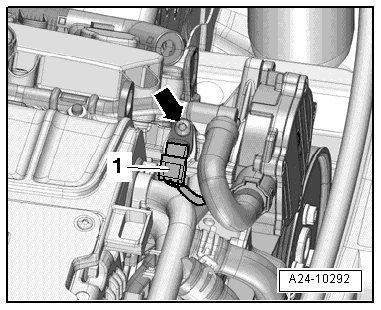

- Disconnect the connector - 1 -.






- Remove the bolt - arrow - and remove the right camshaft position sensor (G40).

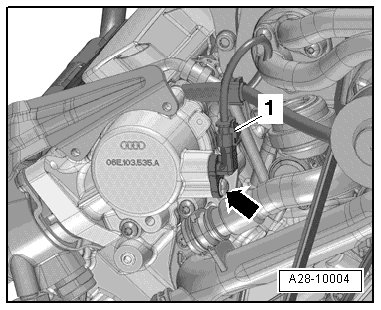

- Disconnect the connector - 1 -.






- Remove the bolt - arrow - and remove the left camshaft position sensor 2 (G163).

Installing

• Tightening specifications, refer to => [ Ignition Overview ] Ignition Overview.

Installation is performed in reverse order of removal, noting the following:

• Replace O-rings.
