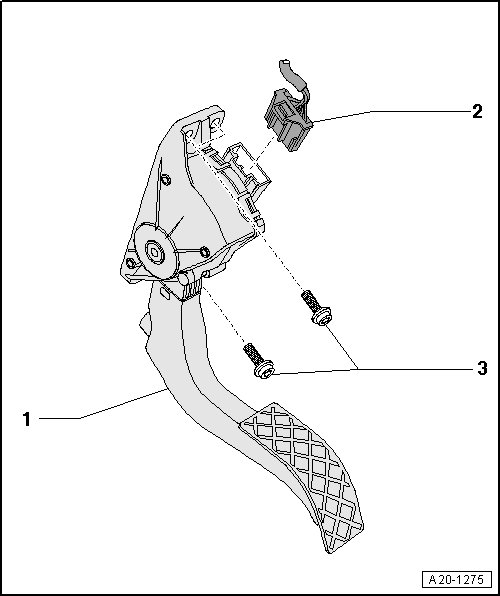

Accelerator Pedal Module Version 1 Assembly Overview
Accelerator Pedal Module Version 1 Assembly Overview 1 Accelerator Pedal Module •
With Throttle Position (TP) Sensor (G79) and
Accelerator Pedal Position Sensor 2 (G185)
•
Removing and installing, refer to => [ Accelerator Pedal Module, Version 1 ]
Accelerator Pedal Module, Version 1.
2 Electrical Harness Connector 3 Bolt, 9 Nm
