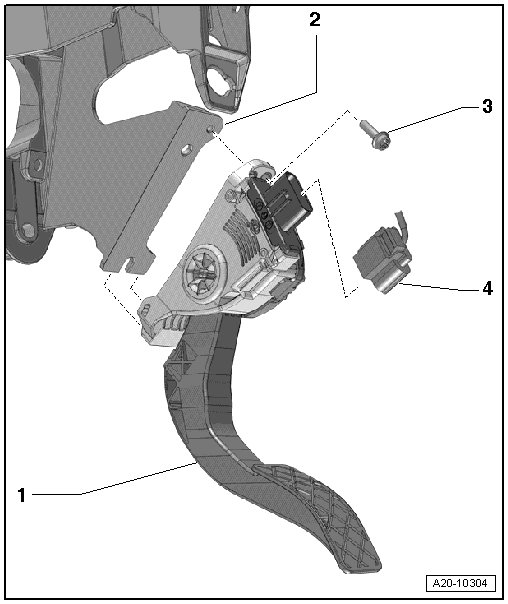

Accelerator Pedal Module Version 2 Assembly Overview
Accelerator Pedal Module Version 2 Assembly Overview 1 Accelerator Pedal Module •
With Throttle Position (TP) Sensor (G79) and
Accelerator Pedal Position Sensor 2 (G185).
•
Removing and installing, refer to => [ Accelerator Pedal Module, Version 2 ]
Accelerator Pedal Module, Version 2.
2 Pedal Bracket 3 Bolt, 8 Nm 4 Electrical Harness Connector
