Accelerator Pedal Module, Version 1






Accelerator Pedal Module, Version 1

Removing





- Remove driver's side lower instrument panel cover.

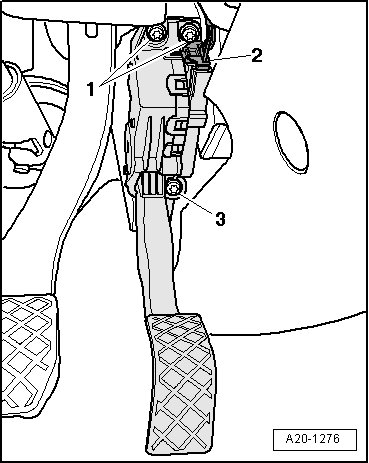

- Separate the electrical connector - 2 -.

- Remove the screws - 1 - and - 3 -.

- Remove accelerator pedal module.

Installing

• Assembly overview, refer to => [ Accelerator Pedal Module Version 1 Assembly Overview ] Accelerator Pedal Module Version 1 Assembly Overview.

• Tightening specifications, refer to => [ Fastener Tightening Specifications ] Fuel Supply System - Fastener Tightening Specifications.

Installation is performed in the reverse order of removal, noting the following:

- Install driver's side lower instrument panel cover.

Vehicles with automatic transmission:

- Perform after the first kick-down adaptation in "Guided Functions".
