Engine Speed Sensor: Service and Repair






Engine Speed Sensor (G28)

Removing

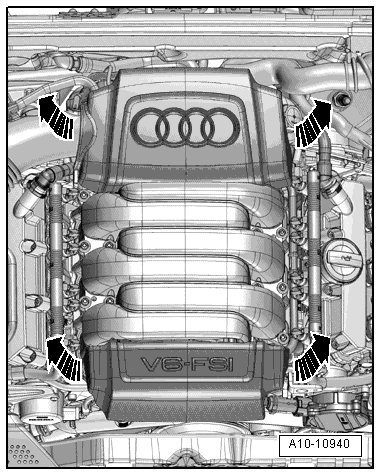

- Remove the rear engine cover - top arrows -.

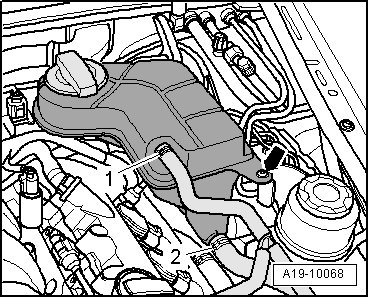

- Remove bolt - arrow -.






- Disconnect the electrical connector to the engine coolant level warning switch (F66) on the bottom of the coolant reservoir and lay the reservoir aside with the coolant hoses - 1 - and - 2 - attached.

• To improve clarity, the work procedures in the following illustrations are shown with the engine removed and viewed from the rear.

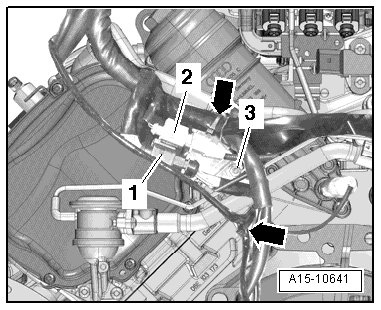

- Remove electrical harness connectors - 1 - and - 2 - from bracket and disconnect.






- Free up the electrical wiring harnesses - arrow -.

- Remove the nut - 3 - and free up the ground (GND) wire.

- Remove the double bolt and bracket.

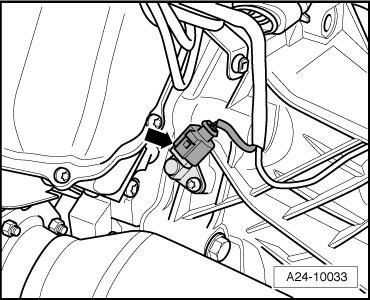

- Disconnect electrical connector - arrow -.






- Remove the bolt and remove the engine speed sensor (G28).

Installing

• Tightening specifications, refer to => [ Ignition Overview ] Ignition Overview.

Installation is performed in reverse order.
